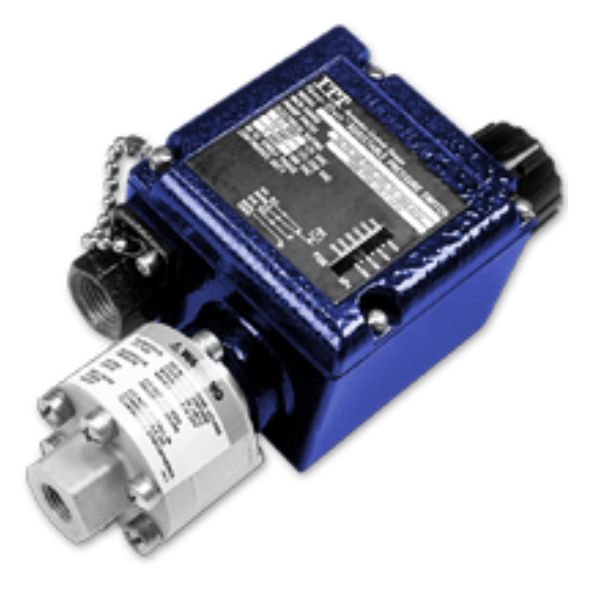

Neodyn 101P Series Pressure Switch / External Adjustment

Series 101P (diaphragm sensor) for pneumatic and low impulse hydraulics up to 3000 psig system pressure.

Versatile Nega-Rate® Belleville disc spring pressure switch for a wide range of applications. Series 101P (diaphragm sensor) for pneumatic and low impulse hydraulics up to 3000 psig system pressure.

Features

Advantages

  • Set Point Stability
  • Extensive Cycle Life
  • Vibration Resistance
  • High Over-Pressure Capability

Features

  • Negative Rate Disc Spring
  • Stainless Steel Exterior and Interior
  • Wetted Materials for Corrosive Service
  • Hermetically Sealed Electricals (Dual Seal Certified)
  • Flanged Process Connections
  • Compact Designs

Applications

  • aerospace
  • general industrial
  • energy and chemical markets

Specifications

Electrical
Snap action electrical switch
recognized by Underwriters’
Laboratories, Inc. and CSA
International

Electrical Connection
1/2 NPT female conduit connection
with terminal block

Pressure Connection
Wetted Material 1
1/4 NPT Female
Wetted Material 4
1/2 NPT Female

Temperature Range*
Ambient: – 40°F to + 180°F
(- 40°C to + 82°C)
Media: – 40°F to + 300°F
(- 40°C to + 149°C)
*Temperature limits change with
O-Ring selection

Adjustment
External screwdriver slot adjustment
and range scale

Shipping Weight
Approximately 3 pounds

Downloads

Neodyn 101P Series Pressure Switch External Adjustment
