Description

ITT-Neo Dyn Industrial Switches General Information

ITT-Neo Dyn Industrial Switches is a leading manufacturer of high-quality and reliable industrial switches. Our customizable compact switches, pressure switches, hazardous area switches, vacuum switches and temperature switches support a wide range of applications around the world. Our legacy of competitively priced products and on-time delivery guarantees that you have proven performance in the products you need to support your specialized needs when you need them most. With a strong focus on the aerospace, general industrial, energy and chemicals markets, we are your first choice for all your switch product needs.

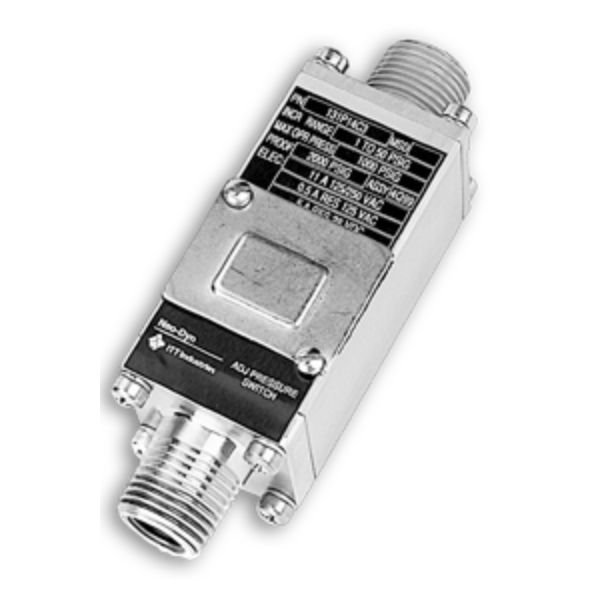

The General Use Of Neodyn 131P NEMA 4X and 13 Pressure Switch

Compact, adjustable pressure switch for pneumatic or low impulse hydraulic process applications. Using our efficient Nega-Rate® Belleville disc spring, we offer superior set point stability and vibration resistance. The 131P series pressure switch also has a selectable deadband feature which can be preset to fit most any application.

Features

Compact, adjustable pressure switch for pneumatic or low impulse hydraulic process applications.
Using our efficient Nega-Rate® Belleville disc spring, we offer superior set point stability and vibration resistance.
The 131P series pressure switch also has a selectable deadband feature which can be preset to fit most any application.

Applications

for pneumatic or low impulse hydraulic process applications

Specifications

Electrical Listings: Snap action electrical switch recognized by Underwriters’ Laboratories, Inc. and CSA International
Electrical Connection: 1/2 NPT male conduit connection with PVC insulated 18 AWG, 18″ long leads
Pressure Connection: 1/4 NPT Female and 1/2 NPT Male
Temperature Range*:
- Ambient: -40°F to +180°F (-40°C to +82°C)
- Media: -40°F to +300°F (-40°C to +149°C)
  * Temperature limits change with O-Ring selection
Adjustment: Internal, slotted adjustment wheel
Shipping Weight: Approximately 20 ounces
