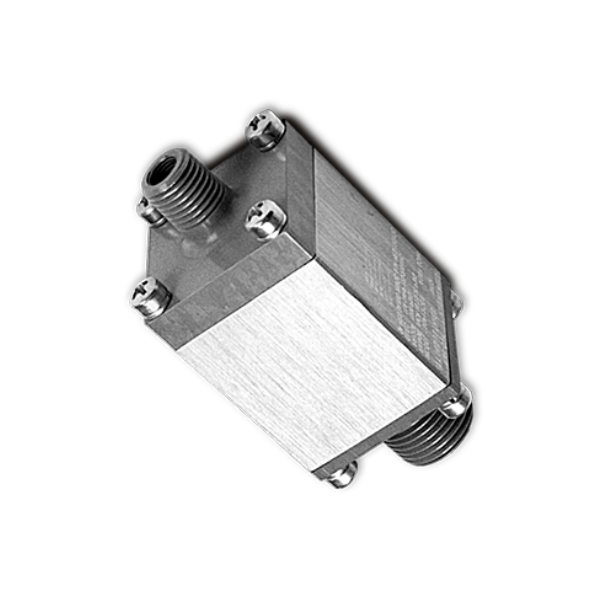

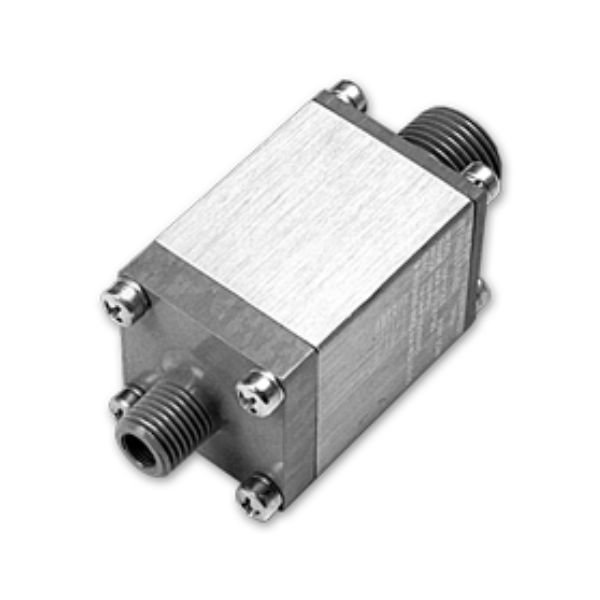

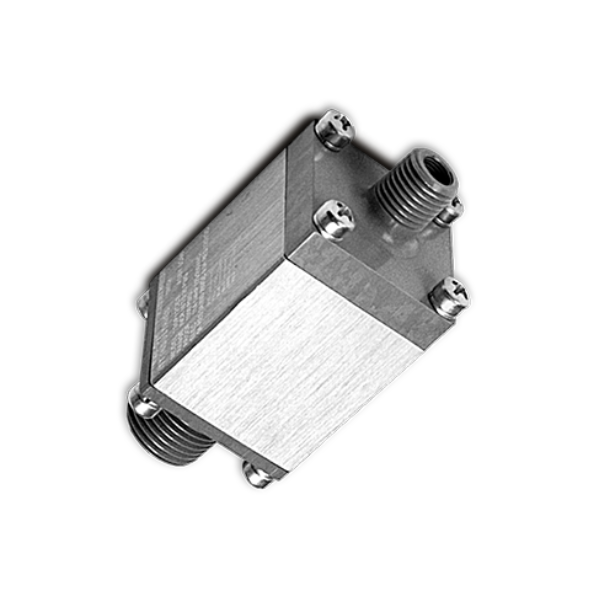

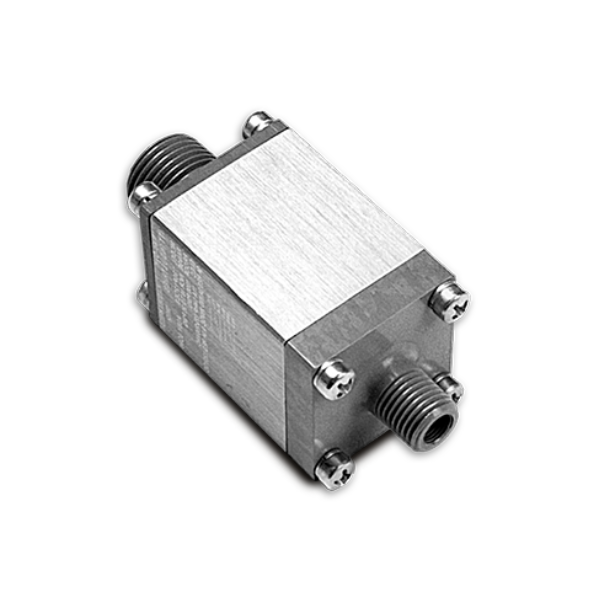

Neodyn 182P NEMA 4 and 13 Vacuum Switch

Neodyn 182P NEMA 4 and 13 Vacuum Switch: Compact, versatile vacuum switch suited to numerous applications. Features efficient Nega-Rate® Belleville disc spring for stable set points and is field adjustable through the pressure port. Once adjustments are made and the switch is installed, it becomes tamper-proof.

Neodyn 182P NEMA 4 and 13 Vacuum Switch: Compact, versatile vacuum switch suited to numerous applications. Features efficient Nega-Rate® Belleville disc spring for stable set points and is field adjustable through the pressure port. Once adjustments are made and the switch is installed, it becomes tamper-proof.

ITT Neo-Dyn® provides a myriad of industrial and aerospace products such as compact adjustable switches, pressure switches, hazardous area switches, vacuum switches, temperature switches & more. Located in Valencia, CA we provide a large selection of process control products for the industrial, chemical & energy markets globally. Our ability to manufacture the highest quality of both commercial & industrial switches in the industry, allows us to give you the most competitive pricing available along with outstanding customer service & fast delivery. If you’d like to learn more, contact us today and our experienced staff can help you!

Features

  • Compact, versatile vacuum switch suited to numerous applications.
  • Features efficient Nega-Rate® Belleville disc spring for stable set points and is field adjustable through the pressure port.
  • Once adjustments are made and the switch is installed, it becomes tamper-proof.

Applications

for industrial applications

Specifications

  • Electrical: Snap-action electrical switch recognized by Underwriters’ Laboratories, Inc. and CSA International
  • Electrical Connection: 1/2 NPT male conduit connection with PVC insulated 18 AWG, 18″ long leads
  • Pressure Connection: 1/4 NPT Male
  • Temperature Range*
    • Ambient: -40°F to +180°F (-40°C to +82°C)
    • Media: -40°F to +300°F (-40°C to +149°C)
  • Adjustment: 1/8″ Allen wrench through port
  • Shipping Weight: Approximately 8 ounces

*Temperature limits change with O-Ring selection

Downloads

Datasheet : Neodyn 182P NEMA 4 and 13 Vacuum Switch
