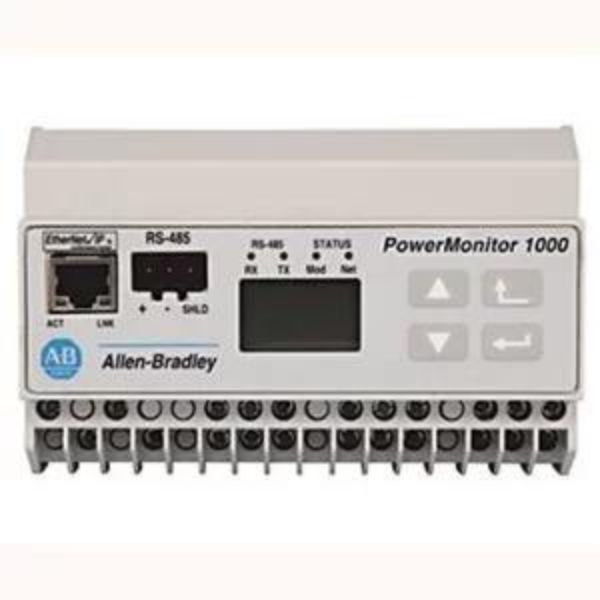

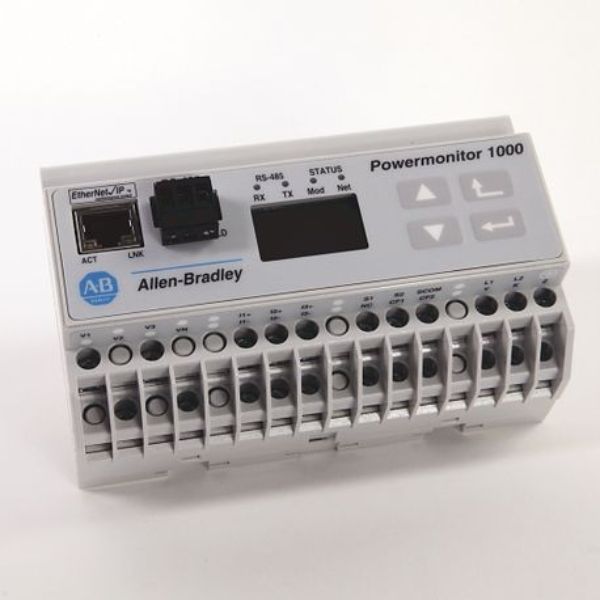

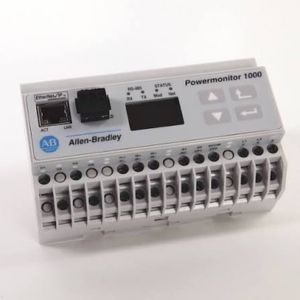

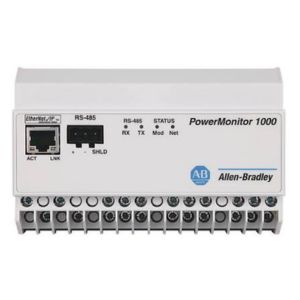

Allen Bradley 1408 Power Monitor 1000

Allen Bradley 1408 Power Monitor 1000 Allen Bradley 1408 Power Monitor 1000 The power monitor is a compact, cost-effective, electric power, and energy metering device intended for use in industrial control applications, such as distribution centers, industrial control panels, and motor control centers. It measures voltage and current in an electrical circuit, meeting revenue accuracy.

The Allen-Bradley Bulletin 1408 PowerMonitor 1000 is a compact, digital electrical power and energy meter designed for sub-metering, energy accountability, load profiling, and cost allocation. Housed in a compact panel or DIN-rail footprint, it bridges line-level electrical infrastructure with industrial control platforms like Logix PLCs, SCADA, and FactoryTalk software.

Core Operational Functions

Real-Time Electrical Parameter Tracking: Measures key single- and three-phase parameters including line voltage, phase current, frequency, active power (kW), reactive power ( $\text{kVAR}$ ), apparent power ( $\text{kVA}$ ), and power factor.
Energy Consumption & Demand Logging: Accumulates total consumption ( $\text{kWh}$ , $\text{kVARh}$ $\text{kVAh}$ ) and tracks peak/projected energy demand to prevent utility peak-demand surcharges.
Time of Use (TOU) & Load Profiling: Categorizes energy usage across multi-rate structures (e.g., On-Peak vs. Off-Peak hours) and maintains internal logs for minimum/maximum values, status, and load factors.
Industrial PLC & Control Integration: Native EtherNet/IP (CIP Energy) and Modbus/DF1 protocols allow PLCs (ControlLogix, CompactLogix, MicroLogix) to read energy data in real-time for automated load-shedding during peak usage times.
Pulse Output & Status Inputs: Features a configurable KYZ pulse output to send energy pulse signals to external totalizers, along with digital status inputs to track breaker states or synchronize demand interval timing.

Specifications

Attribute	Value
Control power	85…264V AC 47…63 Hz 125…250V DC 4 VA max
Voltage sense inputs: V1, V2, V3	Input impedance: 5 M W min Input current: 2 mA max
Current sense inputs: I1, I2, I3	Overload withstand: 15 A continuous, 200 A for 1/2 s Burden: 0.05V A Impedance: 0.002 W Max crest factor at 5 A is 3.0 Starting current: 5 mA
Status inputs	Contact closure (internal 24V DC) (except BC3)
KYZ output	80 mA at 240V AC / 300V DC (except BC3)

Features

Available in a compact size
Available EtherNet/IP™, Serial DF1, Modbus RTU, Modbus TCP communications
Includes integrated LCD display
Includes panel or DIN rail mounting
Provides wiring diagnostics
Includes time of use (On-Peak, Off-Peak)
Includes energy, min/max, status, and load factor logs
Offers ability to view data and configure through the integrated web page

Applications

It communicates power and energy parameters to applications such as

FactoryTalk® EnergyMetrix™
SCADA systems
programmable controllers, over Ethernet or serial networks.

The power monitor works with these applications to address key customer applications.

Allen Bradley 1408 Power Monitor 1000

Core Operational Functions

Real-Time Electrical Parameter Tracking: Measures key single- and three-phase parameters including line voltage, phase current, frequency, active power (kW), reactive power ( $\text{kVAR}$ ), apparent power ( $\text{kVA}$ ), and power factor.

Energy Consumption & Demand Logging: Accumulates total consumption ( $\text{kWh}$ , $\text{kVARh}$ $\text{kVAh}$ ) and tracks peak/projected energy demand to prevent utility peak-demand surcharges.

Time of Use (TOU) & Load Profiling: Categorizes energy usage across multi-rate structures (e.g., On-Peak vs. Off-Peak hours) and maintains internal logs for minimum/maximum values, status, and load factors.

Industrial PLC & Control Integration: Native EtherNet/IP (CIP Energy) and Modbus/DF1 protocols allow PLCs (ControlLogix, CompactLogix, MicroLogix) to read energy data in real-time for automated load-shedding during peak usage times.

Pulse Output & Status Inputs: Features a configurable KYZ pulse output to send energy pulse signals to external totalizers, along with digital status inputs to track breaker states or synchronize demand interval timing.

Specifications

Attribute

Value

Control power

85…264V AC 47…63 Hz

125…250V DC

4 VA max

Voltage sense inputs: V1, V2, V3

Input impedance: 5 M W min Input current: 2 mA max

Current sense inputs: I1, I2, I3

Overload withstand:

15 A continuous, 200 A for 1/2 s Burden: 0.05V A

Impedance: 0.002 W

Max crest factor at 5 A is 3.0 Starting current: 5 mA

Status inputs

Contact closure (internal 24V DC) (except BC3)

KYZ output

80 mA at 240V AC / 300V DC (except BC3)

Features

Available in a compact size

Available EtherNet/IP™, Serial DF1, Modbus RTU, Modbus TCP communications

Includes integrated LCD display

Includes panel or DIN rail mounting

Provides wiring diagnostics

Includes time of use (On-Peak, Off-Peak)

Includes energy, min/max, status, and load factor logs

Offers ability to view data and configure through the integrated web page
