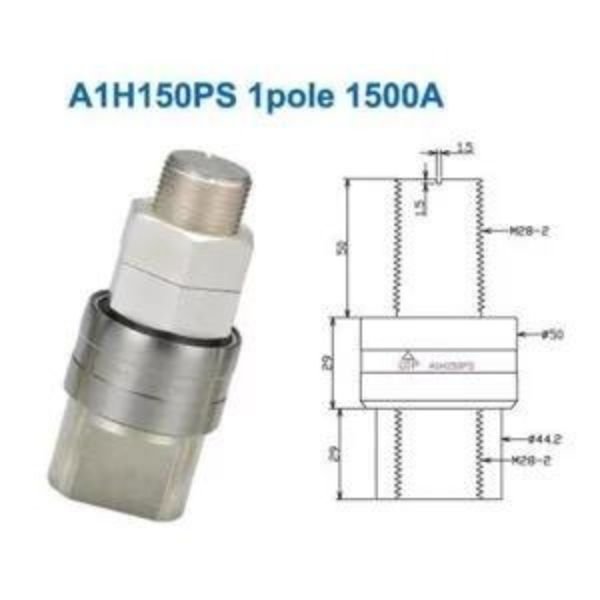

Asiantool A1H150PS Single Conductor

Asiantool A1H150PS Single Conductor rotating electrical connectors are using special, sealing technologies. The material is an alloy or stainless steel

Asiantool A1H150PS Single Conductor

Asiantool A1H150PS Single Conductor Since the establishment of Asian Tool Technologies Ltd. in 2001, we have developed and evolved slip ring products (electrical rotating connectors). To fulfill the needs of the rapidly expanding global technology market, our non-mercury (gallium alloy liquid metal ) slip ring products are environmentally friendly and sustainable.

Being on the cutting edge of the era of technology, our company maintains to bring our valued clients the newest and most efficient products. We are committed to providing our professional skills, quality services, and customizable products, as well as consistently upgrading product excellence.  We are able to accommodate our client’s needs and customize products to their liking.

The Asiantool rotating electrical connectors are using special insulation, sealing, and conductive technologies. The out case material is aluminum alloy or stainless steel.

They are used for any kind of rotating objects of signals like the micro voltage, current, EMF, thermos couple, strain gauge, audio, video, high frequency, etc., and electric power connections.

All types of our liquid metal rotary connectors support CE RoHS compliance.

Features

  • Very low electric noise
  • Very low cost
  • Very low contact resistance (Less than 1mΩ)
  • No maintenance and better reliability than traditional slig rings
  • Suitable for signal and power transfer of rotating devices or instruments

Applications

  • Index table for signal and power connection
  • Resistor cutting machine
  • Electro plating line
  • Rotary stage
  • Cable wheel
  • Circle knitting machine
  • Coloring device
  • Robots
  • Rotary lamp box
  • Surgical lamp
  • Reel to reel plating line eguipment
  • Speed dome camera
  • Package machine
  • Heating roller
  • Laminating machine
  • Winding machine
  • Spinning LED sign board
  • Wind Turbines
  • Pipe inspection Camera
  • Welding machines

Specifications

Conductor Poles : 1

Current Amp. : 1500

Voltage AC/V : N/A

Max. Freq. MHz : 200

Max. RPM : 100

Operating Temp. Max/Min °C : 60/-30

Rotating Torque (GM-CM) : 2000

Insulation Resistance : N/A

Downloads

Datasheet: Asiantool A1H150PS Single Conductor
