Brainchild DAQ Data Acquisition Studio software is PC-based data logging and Acquisition software. It acquires data from Modbus RTU/ Modbus TCP slave devices like I/O Modules, Paperless Recorders, Temperature Controllers & third parties, etc., and shows Real-time data in PC in form of Trends, Bar graphs, Digital values, etc., and store data in PC for later archival. AQ support till 2048 tags (from V1.2 or later). One tag means one channel and it can be either Analog input Analog output or digital input or digital output or Math channel.

Systems Brainchild DAQ Data Acquisition Studio

Keysight has provided data acquisition and switching solutions for more than 25 years. Use Keysight DAQ systems for electrical, physical, mechanical, acoustic, and signal routing applications up to 50GHz. Gain confidence in your measurement results with Keysight DAQ systems.

Get the best value with high-quality switching and measurements in compact, cost-effective solutions
Use industry standards with modular LXI and VXI solutions
Enjoy the included Benchvue software to collect, analyze and present your data in real-time

Features

Display Historical trend
Display Historical alarms/Events
Display Reports (Daily, Weekly & Monthly)
Display Historical values in tabular column
Mark Remarks on data (Comments)
Search data by Time, Timer Period, Event/Alarm, tag wise and Remark
View trends both Horizontally and Vertically
Zoom out & Zoon In
Display view options available at 1 sec/dot, 2 sec/dot, 5 sec/dot, 10 sec/dot, 20 sec/dot, 30 sec/dot, 1 min/dot, 2 min/dot, 5 min/dot, 10 min/dot, 30 min/dot, 10 min/page, 30 min/page, 1 hr/page, 2 hr/page, 4 hr/page, 8 hrs/page, day/page, week/page and Month/page
Display white back ground/black background
Print trend view, Event/Alarm list, Reports & Tag Values
Export data and alarms/events to CSV files. (Specify time or time period or all)

Applications

Printed circuit board

Specifications

Maximum tags:2048
Real time Viewer

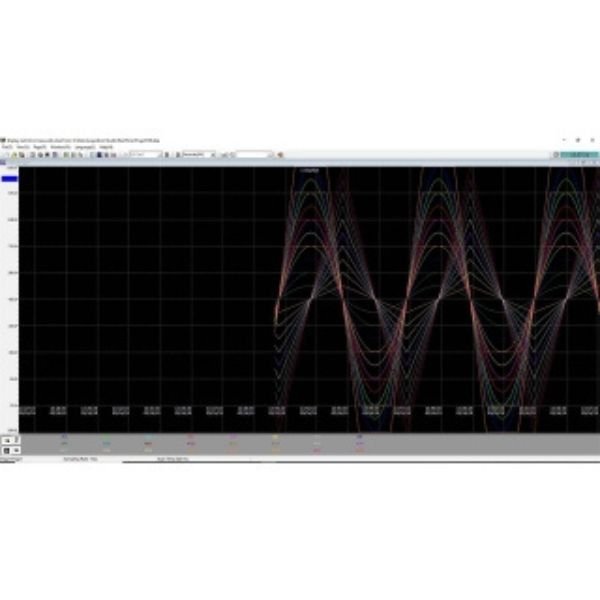

Real time trends
Real Time Alarms

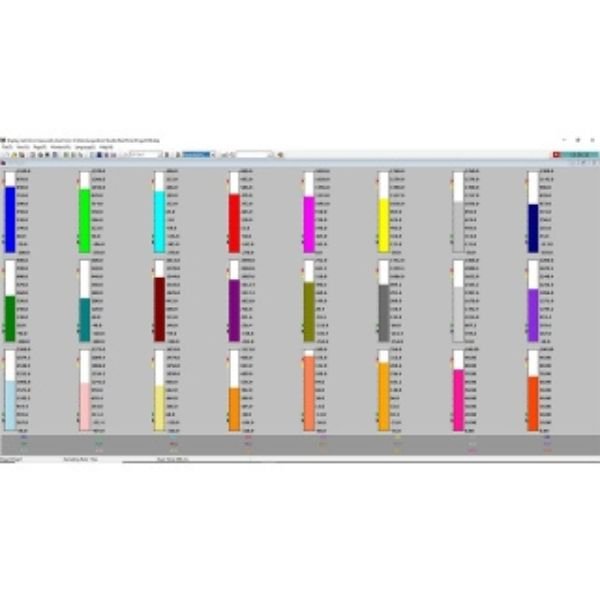

Real time bar graphs

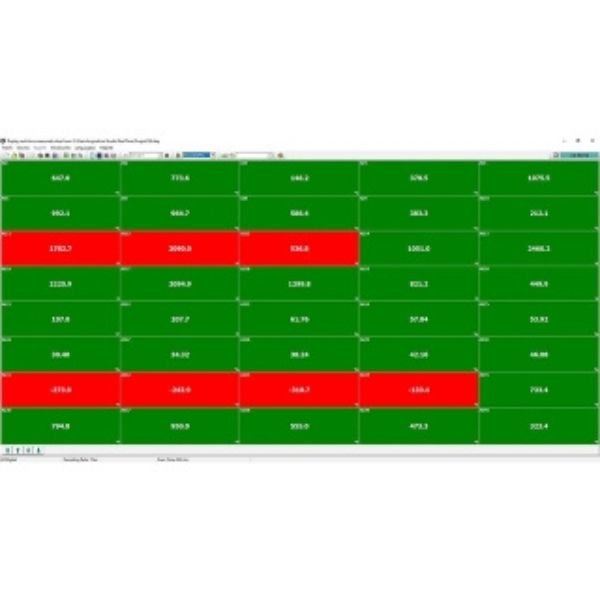

Real time digital value
Historical viewer
Historical Alarms
Alarms by Email
Mathematic channels
Comments for Alarms: 100
Number of display pages: 200
Number of tags display per page: 1 to 24
Timers: 100, Counters: 50 & Totalizers: 50
Log Speed: 1, 2, 5 10, 30, 60 and 120 Sec
Log trigger type: By time, By value change
Log Methods: Instant, Average, Minimum & Maximum
Data Types: 2 byte, 4 byte and 8 byte, Decimal: 0 to 4
Event Types: H, HH, L, LL, Rate of increase, Rate of decrease and Error
Number of events per Analog Channel: 5
Number of Jobs/event: 2
Project Auto configuration option: Available
Jobs: Log Alarm, Log Event, Log Alarm (Auto ack.), send email, Sound buzzer, DO Latch ON, DO Latch OFF, DO Process, Enable Timer, Disable Timer, Preset Totalizer, Reset Totalizer, Enable Totalizer, Disable Totalizer, Preset Counter, Reset Counter, Increase Counter, Decrease Counter, Log Report, Reset Min/Max/Avg and Log Message
Math functions: SIN, COS, EXP, SQRT, LN, LOG, ABS, POW, ROUND, HI, LO, INV, TG, CTG, ASIN, ACOS and ATG
Display languages: English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Thai and Czeck, Chinese (Traditional) and Chinese (Simplified)
