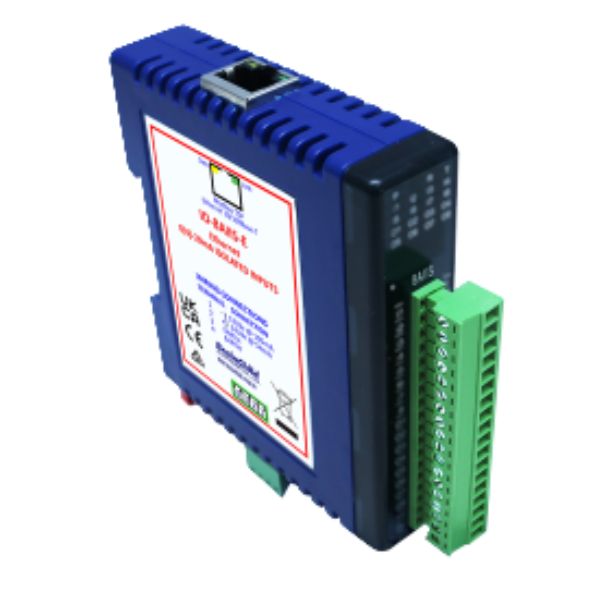

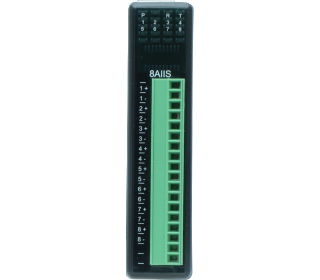

Brainchild IO-8AIIS-E Ethernet Modbus IO Module

Brainchild IO-8AIIS-E Ethernet Modbus IO Module

Product Note:

No product notes available.

Categories: , , Tags: , , ,
Contact us

Description

Brainchild IO-8AIIS-E Ethernet Modbus IO Module

Brainchild IO-8AIIS-E Ethernet Modbus IO Module This Remote IO module is based on Ethernet Modbus TCP communication for Data Acquisition and Control Systems. These IO Modules offer good reliability, ease of installation, and easy Maintenance. Extremely cost-effective modules for industrial measurement and monitoring applications. They can be easily added to the existing RS485 or Ethernet Modbus network.
Different types of IO Modules are available for the users to select as per their requirements.
All Modules are having LED indications for monitoring the status of digital inputs & outputs and fault diagnostics. Special modules are available with interchannel isolation between channels.
Modbus TCP modules have an Ethernet interface with Modbus TCP protocol.

Specifications

ParameterSpecification
ManufacturerBrainchild Electronic Co., Ltd.
Model / Part NumberIO-8AIIS-E
Input Channels8 High-Isolation Analog Input Channels
Input Signal Range0 to 20 mA or 4 to 20 mA (software configurable per channel)
Communication ProtocolModbus TCP / IP over Ethernet
Physical Interface10/100 Mbps Ethernet (RJ45 Port)
Default IP Address192.168.1.1 (Factory default; reconfigurable)
Channel Isolation1000 Vrms Optical Isolation (Channel-to-Channel & Channel-to-Logic)
ADC Resolution & Accuracy16-bit ADC; 0.1 of full scale accuracy
Input Impedance250 internal precision shunt resistor

Features

Machine Learning & Data Science

  • Definition: An individual measurable property, attribute, or characteristic of a phenomenon being observed.

  • Examples: In house price prediction, features include square footage, number of bedrooms, and zip code.

  • Feature Engineering: The process of selecting, manipulating, and transforming raw data into features suitable for machine learning models.

Applications

  • Distributed Process & Water/Wastewater Automation: Acquiring remote $4text{–}20text{ mA}$ signals from flowmeters, level transmitters, and chemical dosing systems across facilities with ground potential differences.

  • SCADA & Ethernet PLC Expansion: Adding isolated analog inputs to Modbus TCP masters (such as Ignition, Siemens, Schneider Electric, or Allen-Bradley systems).

  • Plant Energy & Utility Monitoring: Centralizing analog power, flow, and gas sensor telemetry across manufacturing facilities over existing plant Ethernet networks.
