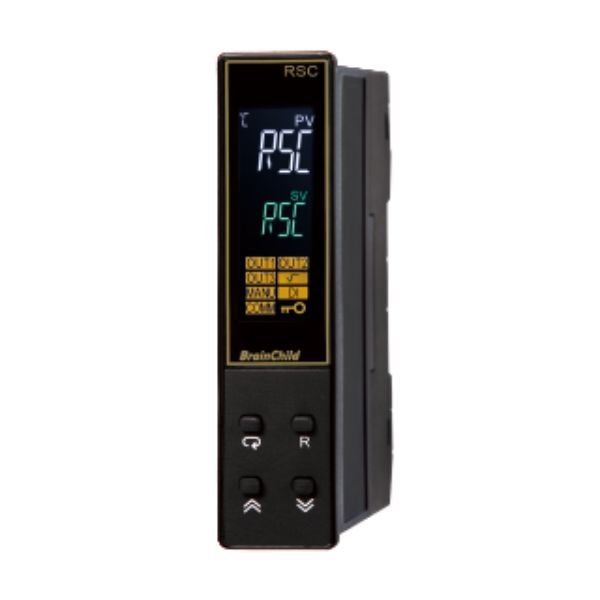

Brainchild RS-C Signal Conditioner The RSC is a specially designed signal conditioner that can accept an input from universal input and output the conditioned signal. It is powered by an 11-26 or 90-250 VDC /VAC supply. The universal input is fully programmable for Linear Voltage, Linear Current, PT100, and thermocouple types J, K, T, E, B, R, S, N, L, U, P, C, and D input. The input signal is digitized by using an 18-bit A-to-D converter. Its fast sampling rate allows the signal conditioner to retransmit the signal faster. It can do a maximum of 3 retransmission with one input.
Power Input :
4: 90 to 250 VAC, 47-63 Hz
5: 20 to 28 VAC, 47-63 Hz / 11 to 40 VDC
Output 1 :
3: Retransmission 4-20 mA / 0-20 mA (OM98-3)
5: Retransmission 0-10 VDC (OM98-5)
Output 2 :
0: None
3: Retransmission 4-20 mA / 0-20 mA (OM98-3)
5: Retransmission 0-10 VDC (OM98-5)
Option 1 :
0: None :
1: RS-485
2: 1 Digital Input (DI1)
Option 2 (Output 3 / Digital Input )
0: None :
1: Retransmission 4-20 mA / 0-20 mA (OM98-3)
2: Retransmission 0-10 V (OM98-5)
4: 1 Digital Input (DI2)
Features
The new generation of signal conditioner has a lot of unique features.
The unique features are listed below.
- Optional LCD Display
- High Accuracy 18 Bit A-D Conversion
- Up to 3 retransmission outputs with 15 Bit resolution
- Fastest Sampling Rate of 200 msec
- Universal Input
- RS-485 Communication
- Event Input
- Lockout Protection
- Bidirectional Menu Navigation
- SQRT Function for PV
Applications
It is installed on the heating material tube of the injection molding machine to control the temperature of the raw material, effectively control the liquid temperature of the plastic and improve the molding quality of the product.
Installed on the hot runner system for temperature control of runners and gates to stabilize the quality of the plastic.
Temperature control on the mold temperature machine, indirectly adjusting the temperature of the mold by adjusting the temperature of the hot fluid, can improve the production efficiency of the product and reduce the generation of defective products.
Vacuum furnace equipment / vacuum melting / vacuum heat treatment
A new algorithm for PID adjustment using fuzzy rules is used to adjust the PID algorithm to eliminate the PID saturation integral phenomenon when the error is large. When the error is small, the improved PID algorithm is used for adjustment and can be automatically adjusted. Learn and memorize some of the characteristics of the controlled object to optimize the effect
The temperature control of the electric heating cloth package is often used for the heating of the exhaust pipe valve parts of the semiconductor factory, the panel factory, or the special steel cylinder.
In the semiconductor temperature process control program, the heating system of the chamber, such as the decane process, the dichloromethane process
Ceramic sintering furnace:
The heating process on the sintering furnace controls the heating rate to obtain a finished product with better quality and stability.
Electric kiln:
Temperature adjustment during kiln firing to obtain a finished product with better quality and stability.
Dyeing machine:
control the temperature during dyeing to a suitable range, which in turn reduces chromatic aberration and improves the quality of dyed products.
Fiber dryer:
The temperature during drying is controlled within a suitable range to improve the fiber product.
