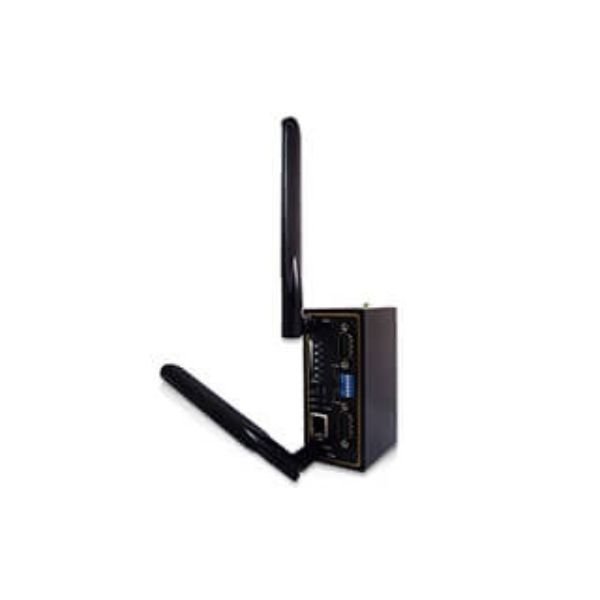

Brainchild SW5502 Ethernet Wireless

Brainchild SW5502 Ethernet Wireless is our latest addition to our Industrial Wireless products; its small size but powerful architecture makes it a perfect choice for industrial/manufacturing needs in which size is a decisive factor. It rewards our customers with superb connectivity withstanding all the harshness in your environment of choice.

In industrial and manufacturing automation fields, these wireless serial device servers of SW550X Series are gateways capable of connecting almost any serial device to a new or existing wireless network, such as connecting WLAN through TCP/IP protocol directly. They are also specially designed for conjunction with PLCs, HMIs, Data Terminals, Recorders, and Controllers.

Features

  • 5 GHz frequency support to reduce interference on 2.4 GHz with other wireless devices

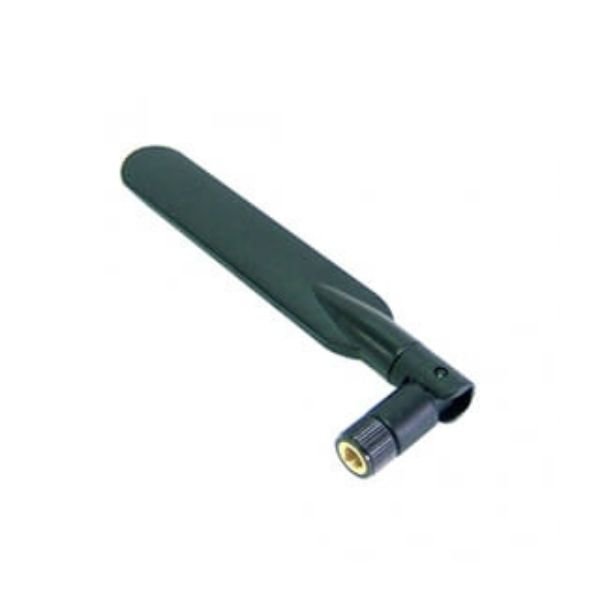

  • Dual antenna design that offers better wireless coverage and reduces wireless blind spots
  • Embedded PCB coating protection
  • Web server/Utility configuration (Serial Manager)
  • Upgrade via Serial Manager or Web server
  • 5 GHz frequency support to reduce interference on 2.4 GHz with other wireless devices
  • FCC (United States), ETSI (Europe), and NCC (Taiwan) certified wireless equipment

Applications

Printed circuit board

Food and Pharmaceutical

Plastic injection molding

Textile industry

Laboratory

Specifications

ConnectorRJ-45
SpeedIEEE802.3ab 10/100/1000Mbps
Serial Port
Port1 port ( Terminal Block )
RS-422RxD+ , RxD- ,TxD+ , TxD- .
RS-485Data+ , Data-
RS-422 , RS-485Auto Detect
RS-422 , RS-485Surge Protect
Receive buffer576 Byte
Transmit buffer640 Byte
Baud Rate300 ~ 230.4 K bps
Flow ControlX-On / X-Off or Hardware
Serial Interface
ConnectorD-Sub9 RS-232/422/485 software selectable
5.08mm TB5 RS-232/422/485 software selectable (TB models)
5.08mm TB5 RS-422/485 software selectable (Sis models)
PortsSW5501: 1 Port, SW5502: 2 Ports
Baud Rate110~921600Kbps
ParityNone, Odd, Even, Space, Mark
Data Bits5,6,7,8
Stop Bits1,2
Flow ControlNone, Xon/Xoff, RTS/CTS
Power Characteristics
Input Voltage9VDC-48VDC
Input Current(9VDC)0.65A
Power ConsumptionApprox. 5.85W (max)
Reverse Polarity ProtectionYes
Connection5.08mm 3-pin Lockable Terminal Block
Mechanicals
Dimensions(W x H x D)47 mm x 110 mm x 90mm
InstallationDIN Rail, Wall Mount (optional)
Reset ButtonYes
Weight500g
Environmental Limits
Operating Temperature-10°C ~ 60°C (14°F ~ 140°F)
Storage Temperature-40°C ~ 85°C (-40°F ~ 185°F)
Ambient Relative Humidity5 ~ 95% RH, (non-condensing)
Software
ProtocolsIPv4, ICMP, TCP, UDP, DHCP Client, SNMP, SMTP, HTTP, DNS, NTP, RADIUS, RFC2217, WPS
Wireless SecurityWEP, WPA, WPA2, TKIP, AES, 802.1x
ConfigurationSerial Manager, Web UI
Virtual COMWindows / Linux redirection software
Link Modes
TCP Server4 connections, Virtual COM, or Reverse Telnet
TCP ClientDual destinations or Virtual COM
UDPUp to 4 ranges of IPs
Warranty
5 years
