CS Instruments DS 500 PM Mobile Efficiency Measurement

Product Note:

No product notes available.

Category: Others Tags: CS Instruments, CS Instruments DS 500 PM Mobile

Description

CS Instruments DS 500 PM Mobile Efficiency Measurement

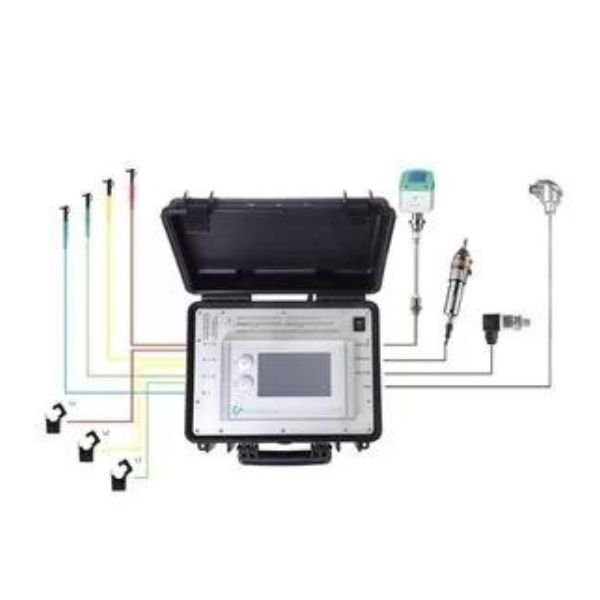

CS Instruments DS 500 PM Mobile Efficiency Measurement: Compressed air cost analysis made easy – the DS500 PM mobile data logger with an integrated active power meter is ideal for auditors or service technicians.

Besides common measurements such as compressed air consumption or humidity, even more, complex measurement tasks can be tackled with this all-round mobile device. With the DS 500 PM mobile, conducting an energy analysis according to DIN ISO 50001 is child’s play. Its clear, simple operating method makes it possible, for example, to carry out an analysis of compressed air costs by simultaneously measuring energy consumption (kW/kWh) and compressor output (m³/m³/h). And the data logger with its integrated effective power meter is perfect for auditors or service technicians.

The CS Instruments product portfolio includes measuring devices for numerous applications in compressed air and gas measurement.

Features

Magnetic voltage measuring tips for picking off the voltage during operation.
Hinged current transformers encompass the conductors of phases L1, L2, and L3. Can also be used during operation.

Applications

up to 11 devices can be connected, including third-party sensors incl. power supply

Specifications

Case dimensions: 360 x 270 x 150 mm
Weight: 4.5 kg
Material: Diecast, front foil polyester, ABS
Sensor inputs: 3/7/11 sensor inputs for analogue and digital sensors; freely allocatable. See options
Digital CS sensors for dew point and consumption with FA/VA series SDI interface, RS 485/Modbus RTU digital
third-party sensors.
Analogue CS Sensors for pressure, temperature, and clamp-on ammeters are preconfigured. Analogue third-party sensors
0/4…20 mA, 0…1/10/30 V, pulse, Pt 100/Pt 1000, KTY
Voltage supply for sensors: 24 VDC, max. 130 mA per sensor, integrated mains unit, max. 24 VDC, 25 W.
For 8/12 sensor input version: 2 integrated mains units, each max. 24 VDC, 25 W
Interfaces: USB stick, Ethernet/RS 485 Modbus RTU/TCP, SDI (other bus systems on request), web server optional
Memory card: Micro SD memory card, memory size 16 GB
Power supply: 100…240 VAC, 50-60 Hz
Colour display: TFT transmissive 7″ touch panel, graphics, curves, statistics
Accuracy: Please see sensor specifications
Operating temperature: 0…50° C
Storage temperature: -20…70°

Downloads

Datasheet : CS Instruments DS 500 PM Mobile – Efficiency Measurement for Compressors
