CS Instruments LD 500/510 - Leak Detector with Camera

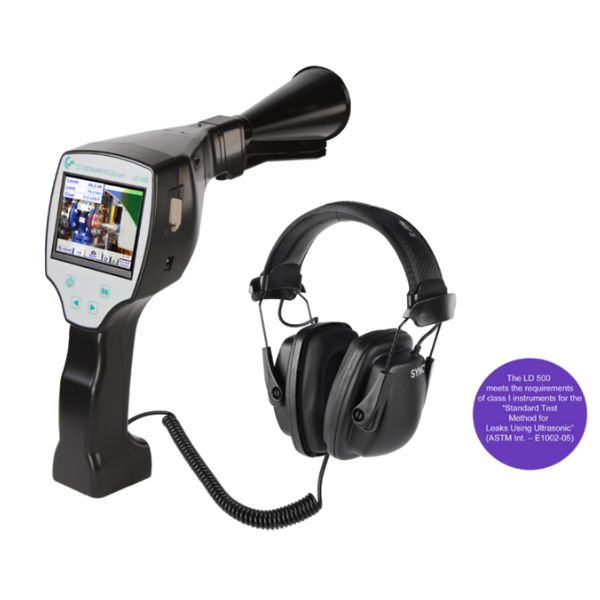

Leak detector with a camera – indicates leakage rate in [l/min or cfm] and costs in country currency [ e.g. $ / year] . Reduce your energy costs by fixing compressed air leaks and increase your profitability and sustainability with the help of the perfect interaction between the LD 500/510 and the associated software “CS Leak Reporter.” The LD 500 leak detector measures the ultrasound generated by compressed air, steam, gas, and vacuum leaks, as well as partial discharge on insulators, transformers, switchgear, high-voltage lines (corona effect). Ultrasound, which is inaudible to the human ear, is amplified and mixed into the audible sound frequency range by the LD 500. This enables you to precisely locate the compressed air leak (ultrasonic source) via the headphones and the camera image, even in noisy environments.

Features

  • Find the smallest leaks even at great distances
  • Find out your leakage size (l/min or cfm) and potential saving (currency/ year)
  • Automatic laser distance measurement for a more reliable cost calculation
  • Auto level: adapts the sensitivity automatically to the environment and eliminates the background noise reliably (0 dB to 120 dB bandwidth)
  • Photograph leaking parts
  • Describe each leak and the necessary actions via the built-in touchscreen
  • Transmit the leak details via USB to your desktop software
  • Create an ISO 50001 report
  • Seek the leak the whole day (9 hours battery life)
  • Additional sensor input for CS Instruments and 3rd party sensors (LD 510 only)

Applications

  • leak testing of pressure tanks or other pressure vessels.
  • Application Report Pneumatic Conveying Systems
  • in the field of education and training
  • for leak detection and documentation

Specifications

  • Operating frequency: 40 kHz ± 2 kHz
  • Connections: 3.5 mm stereo jack for headset, power supply socket for connecting an external charger
  • Laser: Wavelength: 630…660 nm
    Output power: < 1 mW (laser class 2)
  • Display: 3.5″ touch screen
  • Interface: USB interface
  • Data logger: 16 GB SD memory card
    (100 million values)
  • Power supply: Internal rechargeable Li-Ion batteries, approx. 9 h continuous operation, 4 h charging time
    Ambient temperature: 0…+50 °C
  • EMC: DIN EN 61326
  • Auto level: Automatically adapts the sensitivity to the environment and reliably eliminates ambient noise
  • Sensitivity: min: 0.1 l/min at 6 bar, 5 m distance, approx. € 1/year of compressed air costs
  • Weight without headset: 540 grams
