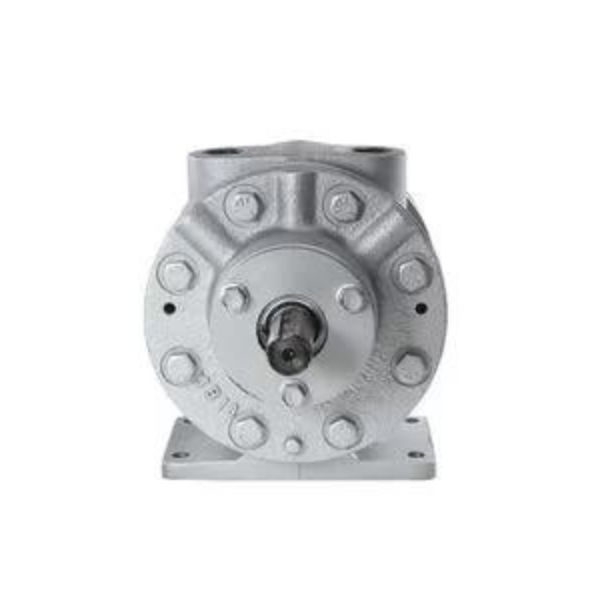

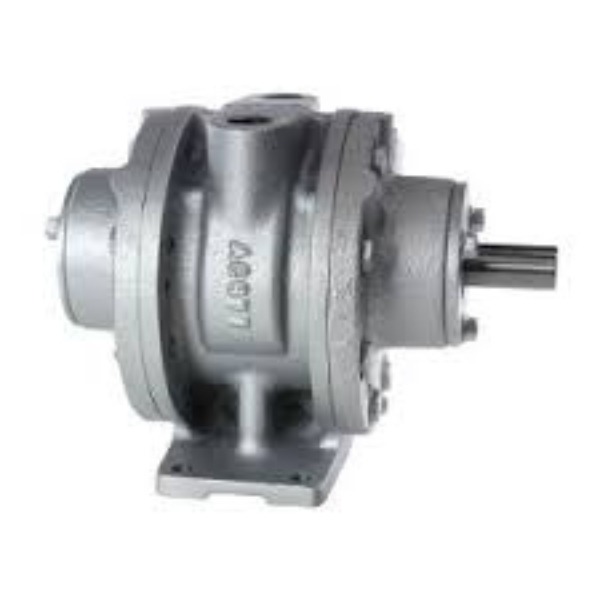

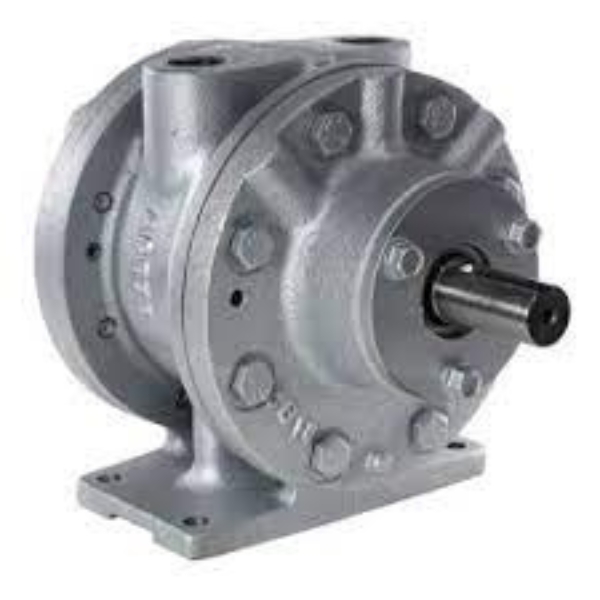

Gast 8AM-FRV-2B Air Motor

Gast 8AM-FRV-2B Air Motor the 8AM family offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control are not only cost-effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor.

In addition, being a nonelectrical Gast 8AM-FRV-2B Air Motor the 8AM family offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Core Operational Principles & Features

Pneumatic Energy Conversion: Compressed air enters the motor chamber, expands, and exerts pressure against sliding vanes housed inside an eccentric rotor. This expansion drives the rotor shaft, generating smooth mechanical power.
Variable Speed & Torque Regulation: Motor RPM and torque output are continuously adjustable simply by throttling the inlet air supply using a standard pressure regulator or flow control valve.
Inherently Explosion-Proof & Non-Electrical: Powered entirely by compressed air or inert gas, the motor produces no electrical sparks or high surface temperatures, making it safe for ATEX / Class I, Division 1 hazardous environments.

Specifications

Key Type: M30-KEYSQ 1.0
Max Air Consumption: 175 cfm ( 297.33 m3h )
Max Power: 5 hp ( 3.73 kW )
Max Pressure: 7 bar ( 101.53 psi )
Max Sound Level: 105 dB(A)
Max Speed: 2500 rpm
Max Torque: 185 in-lb ( 20.91 N m )
Mount: FOOT
Output Shaft Type: Keyed
Port Size and Type: 1/2″ NPT
Regulatory Approval: CE, ATEX
Rotation: Reversible
Shaft Size: 0.75 in ( 19.05 mm )
Stainless Steel: NO
Starting Torque @ 80psi: 117 in-lb ( 13.22 N m )
Torque Max Speed: 132 in-lb ( 14.92 N m )
Vanes: 4
Weight: 27 lbs ( 12.25 kg )

Features

4 Vanes, Reversible
Foot mounting
Any plane operation
Metal muffler AC990 adds 2″ height when installed
II 2 GD c T4

Applications

RECOMMENDED

Filter AH106F
Regulator AH107R
Gauge AA806
Lubricator AH108L
Muffler AG600 – above 1,000 rpm
Oil AD220 – 1 quart (.94 litres)
Repair kit K210 (4 Vane)
Repair kit K283 (8 Vane)

Gast 8AM-FRV-2B Air Motor

Core Operational Principles & Features

Pneumatic Energy Conversion: Compressed air enters the motor chamber, expands, and exerts pressure against sliding vanes housed inside an eccentric rotor. This expansion drives the rotor shaft, generating smooth mechanical power.

Variable Speed & Torque Regulation: Motor RPM and torque output are continuously adjustable simply by throttling the inlet air supply using a standard pressure regulator or flow control valve.

Inherently Explosion-Proof & Non-Electrical: Powered entirely by compressed air or inert gas, the motor produces no electrical sparks or high surface temperatures, making it safe for ATEX / Class I, Division 1 hazardous environments.

Specifications

Key Type: M30-KEYSQ 1.0

Max Air Consumption: 175 cfm ( 297.33 m3h )

Max Power: 5 hp ( 3.73 kW )

Max Pressure: 7 bar ( 101.53 psi )

Max Sound Level: 105 dB(A)

Max Speed: 2500 rpm

Max Torque: 185 in-lb ( 20.91 N m )

Mount: FOOT

Output Shaft Type: Keyed

Port Size and Type: 1/2″ NPT

Regulatory Approval: CE, ATEX

Rotation: Reversible

Shaft Size: 0.75 in ( 19.05 mm )

Stainless Steel: NO

Starting Torque @ 80psi: 117 in-lb ( 13.22 N m )

Torque Max Speed: 132 in-lb ( 14.92 N m )

Vanes: 4

Weight: 27 lbs ( 12.25 kg )
