Gastec MA-2510 Hand Held Flammable Gas Detector

Gastec MA-2510 Hand Held Flammable Gas Detector

Product Note:

No product notes available.

Categories: , Tags: , ,

Description

Gastec MA-2510 Hand Held Flammable Gas Detector

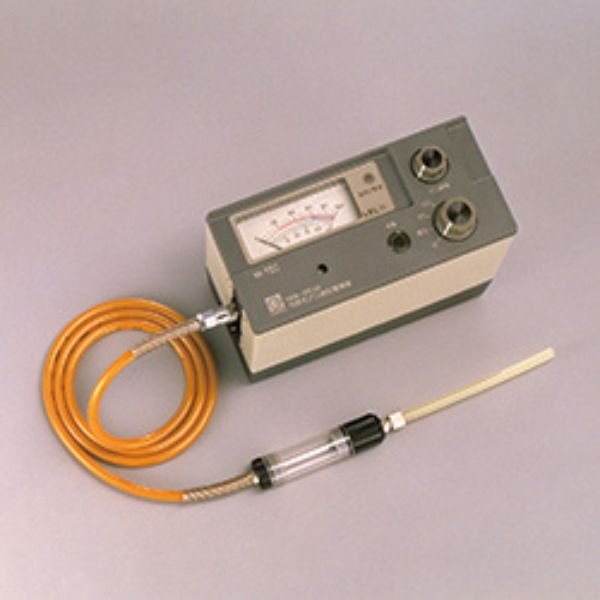

Gastec MA-2510 Hand Held Flammable Gas Detector is a small, lightweight, hand-held device for detecting the presence of flammable gas. It employs an optimized combustion-type contact sensor that enables the detection and measurement of flammable gas to guard against the possibility of explosion.

Detector Tube System

Gastec Detector Tubes indicate concentrations directly by way of a calibrated scale printed on the tubes. At Gastec, we endeavour to achieve highest quality detector tubes for analysing airborne gases/vapours, as well as pollutants in soil and water through our advanced state-of-the-art research and development. Through our efforts we have acquired a solid reputation among our customers in virtually all sectors of industry, commerce and society. Tubes are now available for more than 500 different applications.

Specifications

ParameterSpecification
ManufacturerGastec Corporation
Model DesignationMA-2510
Target Gas ClassCombustible / Flammable Gases ($text{CH}_4$, $text{C}_3text{H}_8$, Isobutane, Solvents)
Measurement Range$0%text{ to }100%text{ LEL}$ (Lower Explosive Limit)
Sensor PrincipleCatalytic Combustion (Pellistor)
Response Time ($T_{90}$)$le 20text{ seconds}$
Power SourceReplaceable AA alkaline batteries or rechargeable NiMH battery pack
Operating Conditions-10°C to +40°C (14°F to 104°F); 10–90% RH non-condensing

Features

  • Catalytic Combustion Sensor Element: Detects combustible gas concentrations by oxidation on a heated catalytic bead, generating an electrical current proportional to the gas %LEL.

  • Diffusion or Pumped Sampling: Designed for ambient personal zone protection or paired with an optional micro-sampling pump / extension probe for remote confined space sampling.

Applications

  • Confined Space Pre-Entry Screening: Checking utility vaults, storage tanks, and pipelines for flammable vapor buildup before hot work or entry.

  • Fugitive Gas Leak Detection: Pinpointing gas leaks along distribution lines, valves, and flange connections in industrial facilities.

  • Emergency & Hazmat Response: Rapid atmospheric screening during chemical spills, fuel leaks, or structural fires.
