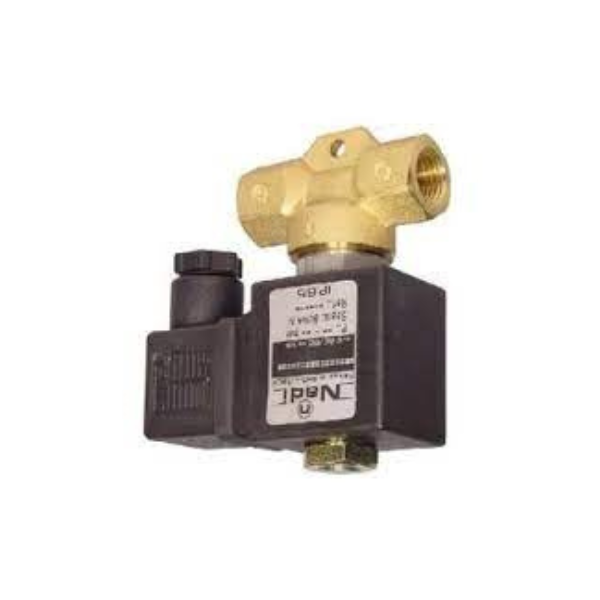

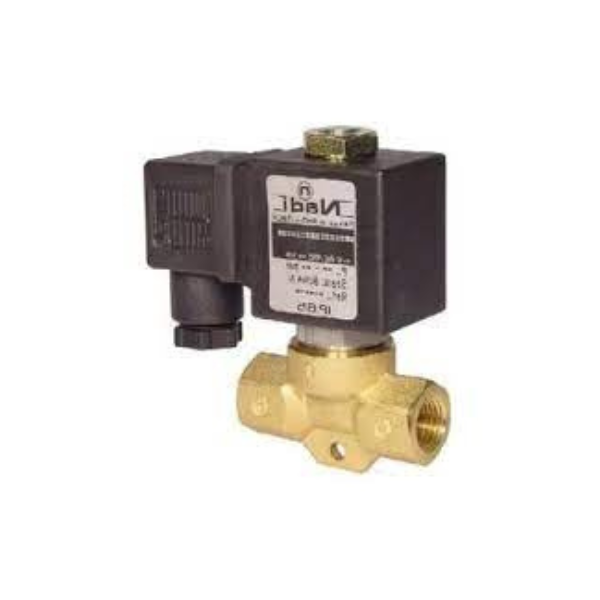

Nadi Series L02/L07 Two Way Solenoid Valve

Nadi solenoid valves are designed according to the European standards and with explosion-proof certificates according to actual “ATEX” 2014/34/UE regulations.

Design, manufacturing method, quality assurance and tests are carried out by a staff, 30 year experienced in advanced solenoid valves production, able to collaborate with customers technical departments in order to solve special problem, make feasibility studies for solenoid valves or its duty for special applications.

Two way direct acting solenoid valve with spring return. Suitable for gaseous and liquid media, compatible with the (body/seals) material used, vacuum. Forged brass, nickel-plated brass or stainless steel body. Stainless steel internal parts. Stainless steel springs. 360° degrees orientable solenoid. Mountable in any position.

Features

Body Material

  • Brass
  • Nickel-plated Brass
  • Stainless Steel

Port Size

  • 1/4″ GAS
  • 1/4″ NPT

Seals Materials

  • Buna N
  • FPM
  • PTFE
  • EPDM

Protection Class

  • IP65

Optional Feature

  • Stable Manual Operator

Applications

L02 – Normally closed.

  • In: A
  • Out: B
  • Coil de-energized: A and B closed.
  • Coil energized: from a A to B.

L07 – Normally open.

  • In: A
  • Out: B
  • Coil de-energized: from A to B.
  • Coil energized: A and B closed.

Specifications

Countinuous duty glass-reinforced nylon moulded coil with electrical connection suitable for DIN-43650B plug (2 poles+ground) or “faston” wire terminal.

  • Coil type : B2
  • Insulation class: F (155°C) – H (180°C) upon request.
  • Winding wire class: H (180°C)
  • Protection class: Waterproof IP-65 (EN60529 standards) when
    properly connected with DIN-43650B plug.
  • Duty: Continuous (S.I.) 100% ED
  • Power consumption(1): Alternate Current 10VA (inrush 20VA)
    Direct Current 8W
  • Voltage tolerance: ± 10%
  • Electrical Insulation: >1000 MOhm
  • Dielectrical Strength: >2000 V/1’
  • Standard voltages: 12 – 24 – 48 – 110 – 220 Vac~ 50/60Hz
    12 – 24 – 48 – 110 – 220 Vdc=
    other voltages available upon request.

Downloads

Datasheet : Nadi Series L02L07 Two Way Solenoid Valve
