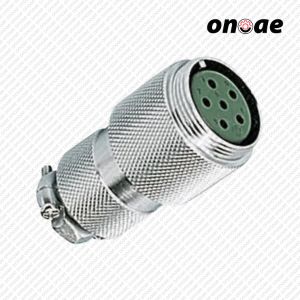

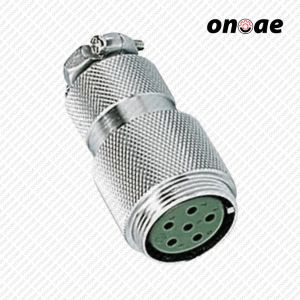

NANABOSHI CIRCULAR CONNECTOR NJC 2014 PF

NANABOSHI CIRCULAR CONNECTOR NJC 2014 PF

Original price was: Rp 800.000.Current price is: Rp 693.000.

Minimum Order: 1 units

Product Note:

No product notes available.

SKU: CNNJC2014PF Categories: , , Tags: , ,

Available on backorder

Contact us

Description

The NANABOSHI CIRCULAR CONNECTOR NJC-2014-PF is a metal circular connector from the NJC series designed for various industrial applications, such as medical equipment, measuring instruments, control equipment, and power supplies. This connector has 14 pins with a female configuration and plug type.

Features

  • Durable Design: The shell is made of zinc alloy or die-cast aluminum, ensuring durability and longevity under various environmental conditions.
  • 5-Key Guide System: Allows precise splicing and prevents orientation errors when connecting.
  • Standard Compliance: Conforms to JIS C 5432 standard, ensuring reliable quality and compatibility.
  • Cable Connection: Soldered connection method, ensuring a stable and safe electrical connection.
  • Gold Contact Plating: Contacts are made of copper alloy with gold plating, improving conductivity and corrosion resistance.

Applications

NJC-2014-PF connectors are ideal for a variety of industrial applications that require reliable and durable electrical connections, such as:

  • Medical equipment
  • Measurement instruments
  • Industrial control equipment
  • Power supply systems

Specification

  • Number of Pins: 14
  • Maximum Voltage: 125V or 250V, depending on configuration
  • Maximum Current: 3A
  • Supported Cable Diameter: 10.0 to 12.5 mm
  • Operating Temperature: -25°C to +60°C
  • Shell Plating: Satin chrome
  • Connection Type: Soldering
  • Shell Size: 20
