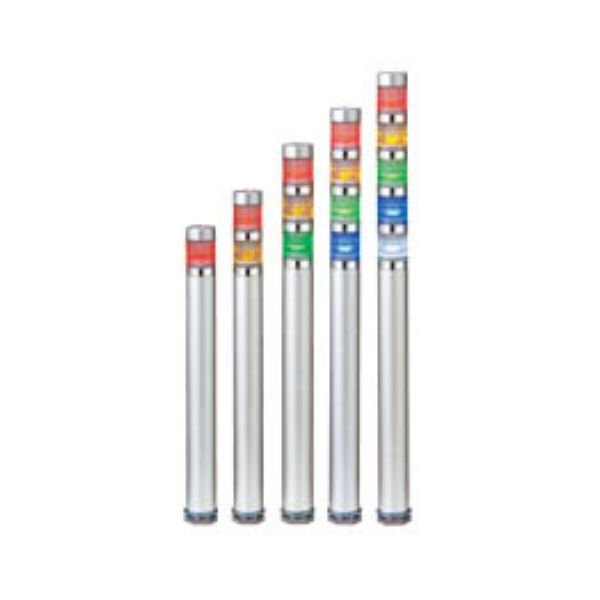

Patlite ME-A 25mm Signal Tower

Patlite ME-A 25mm Signal Tower is a Super slim design with superior visibility, Rearrange LED modules without having to rewire, Corrosion resistant aluminum body and impact, heat resistant polycarbonate lenses, LED units appear clear when off to prevent false indication from ambient light, IP65 water and dust resistance and NPN/PNP open-collector.

Features a super slim-profile design with a 25mm (.98″) diameter and a 200mm body length for easy installation in tight spaces.

Patlite ME-A 25mm Signal Tower is a Super slim design with superior visibility, Rearrange LED modules without having to rewire, Corrosion resistant aluminum body and impact, heat resistant polycarbonate lenses, LED units appear clear when off to prevent false indication from ambient light, IP65 water and dust resistance and NPN/PNP open-collector.

Features a super slim-profile design with a 25mm (.98″) diameter and a 200mm body length for easy installation in tight spaces.

Since 1947, PATLITE has offered state-of-the-art equipment for the process and industrial automation industries. Innovative and durable design, backed by years of industry experience and a strong commitment to safety and security, has made PATLITE the world’s best known manufacturer of visual and audible signaling devices. Headquartered in Japan, PATLITE has more than 1000 employees worldwide with wholly-owned sales subsidiaries in the USA, Mexico, Germany, Singapore, Korea, Thailand, Taiwan, and China.

Features

  • Super slim design with superior visibility
  • Rearrange LED modules without having to rewire
  • Corrosion-resistant aluminum body and impact, heat-resistant polycarbonate lenses
  • LED units appear clear when off to prevent false indications from ambient light
  • IP65 water and dust resistance
  • NPN/PNP open-collector

Applications

  • Control/Switchboard Panel Lighting
  • Machinery
  • Equipment Lighting

Specifications

Specifications

Dimensions Φ25mm
Rated Voltage 24V DC
Functions Continuous Only
Body Color Silver
Body Style Pre-assembled, pre-wired
Interchangeable and stackable module after purchase
Stackable Tiers Up to 5 LED units
Module Colors Red
Amber
Green
Blue
Clear
Conformity Standards CE Marking
UL Recognized Component (US)
c-UL Recognized Component (Canada)
RoHS
Protection Rating IP42
IP65 (PNP type)



Downloads

Datasheet: Patlite ME-A 25mm Signal Tower
