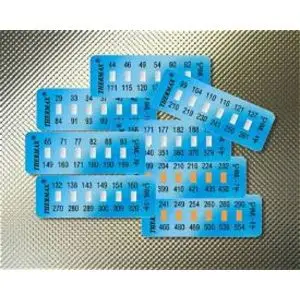

Thermax 6 Level Mini Temperature Label Sensor

Product Note:

No product notes available.

Categories: Sensor, Temperature Sensor Tags: Sensor, Temperature Sensor, Thermax

Description

Thermax 6 Level Mini Temperature Label Sensor

Thermax 6 Level Mini Temperature Label Sensor a range of Irreversible temperature indicators available over a range of -17°C to +1270°C (+1°F to +2318°F) which are used in numerous applications such as Food, Medical, Automotive, Aerospace and Engineering

Thermax 6 Level Mini Temperature Label Sensor

Thermax is a range of Labels and Strips that change colour permanently, indicating the maximum temperature achieved. Available with a wide range of temperatures and sizes.

These irreversible labels can be used in numerous applications such as Food, Medical, Automotive, Aerospace and Engineering.

Inexpensive and Easy to Use, Immediate Response, Permanent Record of Highest Temperature Reached, Oil, Water and Steam Resistant.

TMC Hallcrest manufactures quick response, phase change temperature indicating labels that are easy to use under their brand name THERMAX. We purify organic chemicals with specific melt points to provide a highly accurate irreversible indication of maximum temperatures achieved by a simple colour change.

Offering precise readings, these irreversible temperature labels combine:-

Defined melting points – giving high accuracy with the ability for you to specify exact requirements based on your needs
Individually Coated – allowing you to design your label giving you accurate and clearly defined results
Permanent Colour Change – allowing you to keep records for quality control and due diligence or records abuse of your products in the field.

PRODUCT INFORMATION

Temperature range

29 to 290°C with over 75 specific temperatures available as standard.

Colour change

THERMAX Strips containing temperatures only up to 210°C – Silver/White to Black
THERMAX Strips containing temperatures of 212°C and above – Orange to Black

Film

THERMAX Strips containing temperatures only up to 160°C – Polyester
THERMAX Strips containing temperatures between 165 and 210°C – Polyethylene Naphthalate
THERMAX Strips containing temperatures of 212°C and above – Polyimide

Adhesive

THERMAX Strips containing temperatures only up to 160°C – Modified acrylic adhesive with polyester carrier
THERMAX Strips containing temperatures of 165°C and above – Pure acrylic adhesive with tissue carrier

Available

Strips can be supplied in packs or rolls – Convenient and simple to apply
Custom designs – Offering a bespoke solution
Custom sizes, shapes and materials – Designed to suite a wide range of applications

Specifications

Parameter	Specification
Manufacturer / Brand	TMC Hallcrest / Thermax
Model Series	6-Level Mini Series / Mini 6 Level Strip
Focus Keyword Target	Thermax 6 Level Mini Temperature Label Sensor
Measurement Principle	Irreversible Phase-Change Thermochromic Chemical Reaction
Response Time	1 to 2 seconds (Fast thermal conduction)
Measurement Accuracy	$pm 1°C$ ( $< 100°C$ ) to $pm 1.5°C$ ( $> 100°C$ )
Color Change Pattern	Non-Reversible Off-White / Silver to Black
Adhesive Type	Pressure-Sensitive High-Tack Acrylic Adhesive
Strip Dimensions	Compact Mini Profile (Approximately $12 text{mm} times 32 text{mm}$ / $0.47" times 1.26"$ )
Standard Temperature Ranges	Multiple range configurations available covering $+29°C text{up to} +210°C$ ( $+84°F text{to} +410°F$ )
Packaging Format	Supplied in packs of 10, 50, or 100 indicator strips

Features

6-Level Sequential Progression: Provides six fine incremental temperature windows on a single strip for detailed thermal profile monitoring.
Ultra-Compact Mini Format: Small mechanical footprint designed specifically for surface attachment on tiny components and tight spaces.
Irreversible Color Indication: Permanently changes from white to black upon reaching target thresholds, creating a tamper-evident record of peak heat.
Self-Adhesive Pressure Backing: High-tack acrylic adhesive layer ensures strong bonding to smooth metal, plastic, glass, and PCB surfaces.

Applications

Electronics & PCB Manufacturing: Thermal testing of integrated circuits (ICs), power transistors, heat sinks, and compact power supplies.
Miniature Machinery & Hydraulics: Surface temperature tracking on small hydraulic valves, micro-actuators, and precision spindles.
Medical & Lab Equipment: Temperature verification during sterilization cycles, centrifuge runs, and sensitive sample transport.
Aerospace & Defense Telemetry: Component thermal auditing in avionics bays, compact radar modules, and drone electronics.
