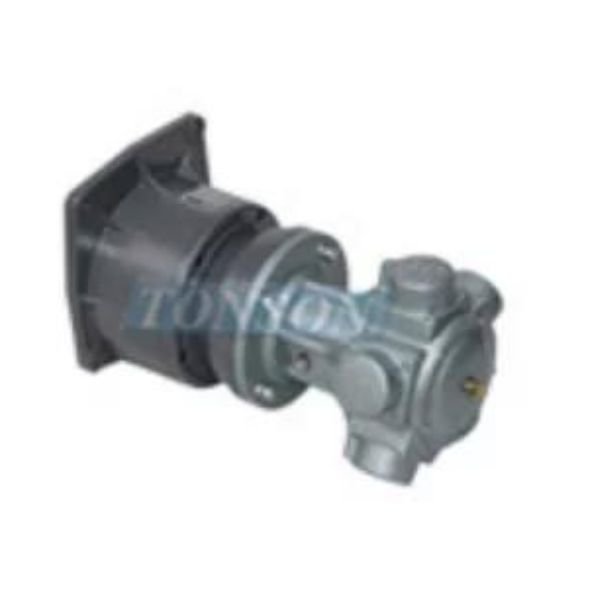

Tonson M6 Standard Piston Air Motor

Tonson M6 Standard Piston Air Motor patented high precision distinctive radial piston design delivers high torque without high levels

Tonson M6 Standard Piston Air Motor patented high-precision distinctive radial piston design delivers high torque without high levels of air consumption and air loss as compared to typical vane-type air motors.

Air Motors can easily operate under conditions that are not suitable for electric, hydraulic, stepper, and servo motors

  • Our Vane air motors are all reversible & Available in 8 Vanes
  • Dual output shafts are available
  • Gear reductions are available. Huge range of Reduction Gearboxes
  • Brakes are available as an option
  • Control valves are available

Vane Air motor applications are unlimited:

  • Hoists / Winches
  • Hose Reels
  • Turntables
  • Conveyor Drives
  • Pump Drives
  • Automation Device
  • Choppers / Grinders
  • Food / Pharmacy Packaging

Vane Air Motor Features Include:

  • Cast Iron Construction
  • 100% Explosion-Proof
  • Stalling Safety
  • Stepless Speed Control
  • Never Burn out
  • Self-Sealing & Cool Running
  • Smooth Start
  • Mounting Flexibility
  • All Plane Operation
  • Toleration of Environment



Features

  • Explosion-proof
  • Stalling Safety
  • Rugged Design
  • Positive Start
  • High Start Torque
  • High Torque output
  • Instantly Reversible
  • Stepless Speed Control
  • Low Air Consumption
  • Easy Maintenance
  • Mounting Flexibility: Flange / Foot / IEC / NEMA / Custom Mounting available
  • Modular Design: All motors may be equipped with gear
  • reducer, brake, hand, remote, remote pendant control as options.
  • Dual-shaft model available.
  • Intrinsically safe in hazardous environment (ex. mines, petrochemical, volatile atmosphere

Applications

  • Hoist / Winches
  • Lifting Devices
  • Mixing Equipment
  • Pump Drives
  • Choppers / Grinders
  • Mining Equipment

Specifications

  • With Reducer Option
  • Type: Standard
  • Gear Ratio: 1:1
  • Performance at Maximum Speed
  1. Power (HP): 0.75
  2. Power (kW): 0.56
  3. Torque: 4.40 N·m
  4. Torque: 38.9 lb·in
  5. Speed: 700 RPM
  6. Air Consumption: 507 l/min
  7. Air Consumption: 18 CFM
  8. Speed: 140 RPM
  • Maximum Torque
  1. Torque: 8.1 N·m
  2. Torque: 71.7 lb·in

Downloads

Datasheet : Tonson M6 Standard Piston Air Motor
