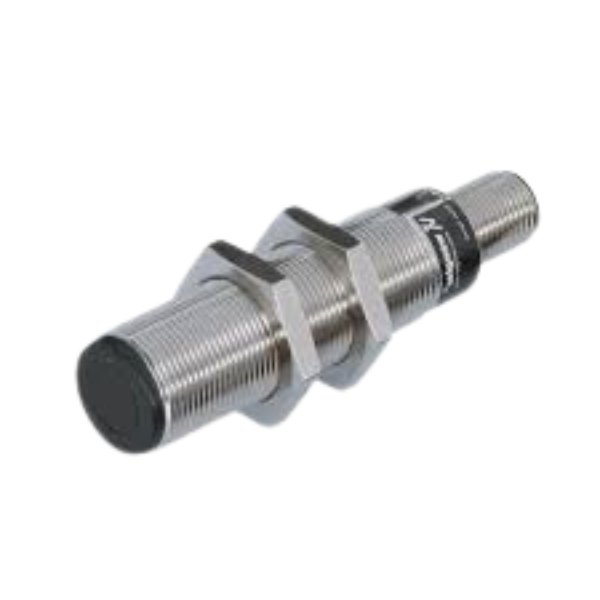

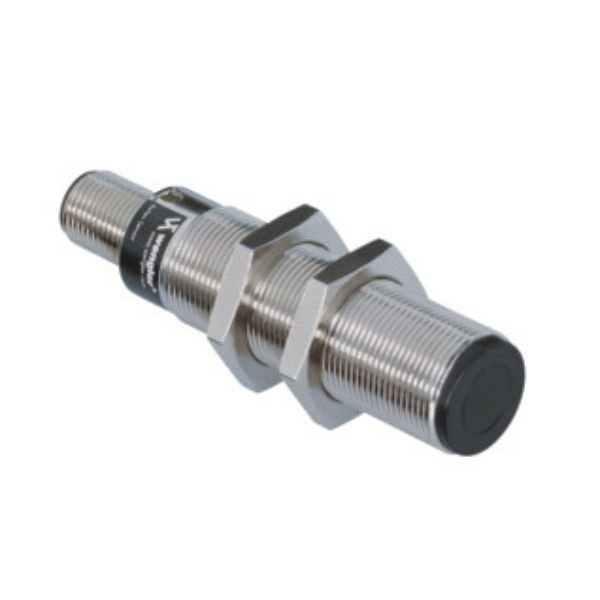

Wenglor HD03PA3 Reflex Sensor Energetic

Product Note:

No product notes available.

Description

Wenglor HD03PA3 Reflex Sensor Energetic

Wenglor HD03PA3 Reflex Sensor Energetic fine focusing optics the background is suppressed beyond 50 mm. Reflex sensors with background suppression detect and measure objects contactless and detect them in front of any defined background. They work with red light, infrared light, blue light, or laser light. Thanks to the principle of angle measurement, the color, shape, and object surface have no influence on the switching behavior of the sensors.

Wenglor HD03PA3 Reflex Sensor Energetic Features at a Glance

  • Low-cost
  • Quasi-background-suppression
  • Finely focused optics

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1,500 Hz
Response Time 330 µs
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Features

  • Low-cost
  • Quasi-background-suppression
  • Fine focused optics

Applications

30 = Switching Status/Contamination Warning

Specifications

Optical Data

Range30 mm
Switching Hysteresis < 15 %
Light SourceInfrared Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux
Opening Angle12 °

Electrical Data

Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 40 mA
Switching Frequency1,500 Hz
Response Time330 µs
Temperature Drift< 10 %
Temperature Range-25 … 60 °C
Switching Output Voltage Drop< 2.5 V
PNP Switching Output/Switching Current200 mA
Residual Current Switching Output< 50 µA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Overload Protectionyes
Protection ClassIII

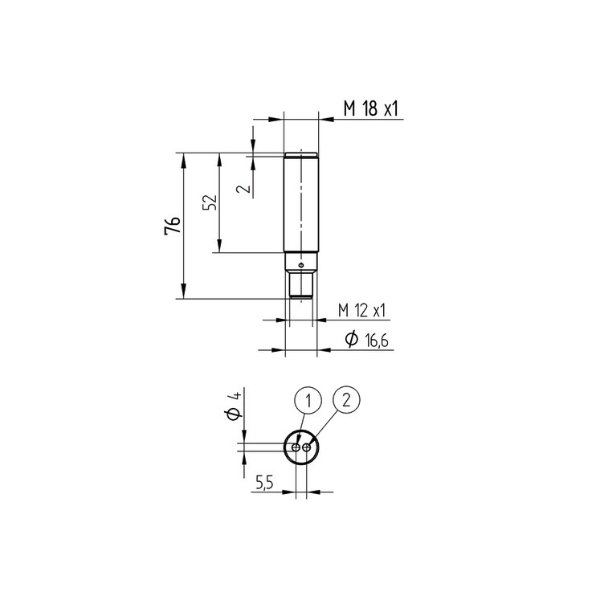

Mechanical Data

Housing MaterialCuZn, nickel-plated
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Safety-relevant Data

MTTFd (EN ISO 13849-1)2,264.75 a

Output

PNP NO/NC antivalentyes

Adjustable parameters

CircuitNC
NC+NO
NO

Downloads

Datasheet : Wenglor HD03PA3 Reflex Sensor Energetic
