Wenglor OSDK803Z0002 Through Beam Sensor

These through-beam sensors are best suited for use in industrial environments.

These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Features

  • Clever inclusive mounting technology
  • Test input
  • Simple installation
  • Large working range
  • Minimal installation space

Applications

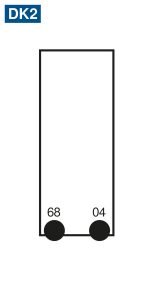

04 = Function Indicator
68 = supply voltage indicator

Specifications

Optical Data

Range 8,000 mm
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Opening Angle 5 °

Electrical Data

Sensor Type Emitter
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 15 mA
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Reverse Polarity Protection yes
Test input yes
Protection Class III

Mechanical Data

Housing Material Plastic
Degree of Protection IP67
Connection M12 × 1; 4-pin

General Data

Scope of delivery Mounting Console
