Wenglor SO983 Through Beam Sensor

Wenglor SW983 Through Beam Sensor

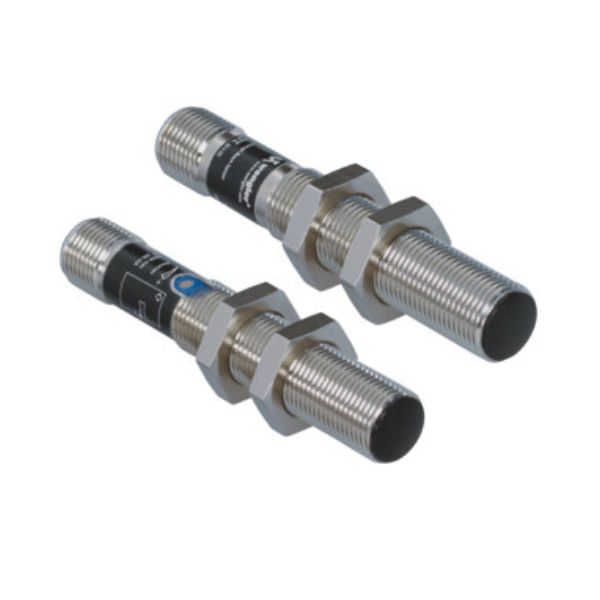

Wenglor SW983 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. The sensors can be checked for correct functioning via the test input.

Get a Quote

Wenglor SW983 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. The sensors can be checked for correct functioning via the test input.

Electrical Data Wenglor SW983

  • Supply Voltage: 10…30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 1800 Hz
  • Response Time: 270 µs
  • Temperature Drift: < 10 %
  • Temperature Range: -25…60 °C
  • Switching Output Voltage Drop: < 2,5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

Optical Data Wenglor SW983

  • Range: 10,000 mm
  • Light Source: Red Light
  • Service Life (T = +25 °C) 100,000 h
  • Opening Angle: 6 °
  • Sensor Type: Emitter
  • Supply Voltage: 10 … 30 V DC

Mechanical Data Wenglor SW983

  • Housing Material: Stainless Steel
  • Full Encapsulation: yes
  • Degree of Protection:  IP67
  • Connection: M12 × 1; 4-pin

Features

  • Special alignment optic
  • Test input

Applications

Overhang Monitoring in Pallet Warehouses Using Through-Beam Sensors

In automated pallet warehouses, pallets are transported and placed on several rack levels by forklift trucks. The lanes must be clear at all times, otherwise there is a risk of collisions. Through-beam sensors are installed at the outer ends of the high-bay racks on all levels to detect protruding pallets immediately. Even in the event of interference factors such as dust, dirt or ambient light, the light barriers with red light reliably switch over long distances.

Through-Beam Sensors

Through-beam sensors detect and count small parts, detect the edges of objects and monitor passages in systems. The emitter and receiver are housed in separate housings according to the through-beam mode. The sensor switches as soon as an object interrupts the laser light, red light or infrared light.

Specifications

Optical Data
Range 10,000 mm
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Opening Angle 6 °

Electrical Data
Sensor Type Emitter
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Reverse Polarity Protection yes
Protection Class III

Mechanical Data
Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
