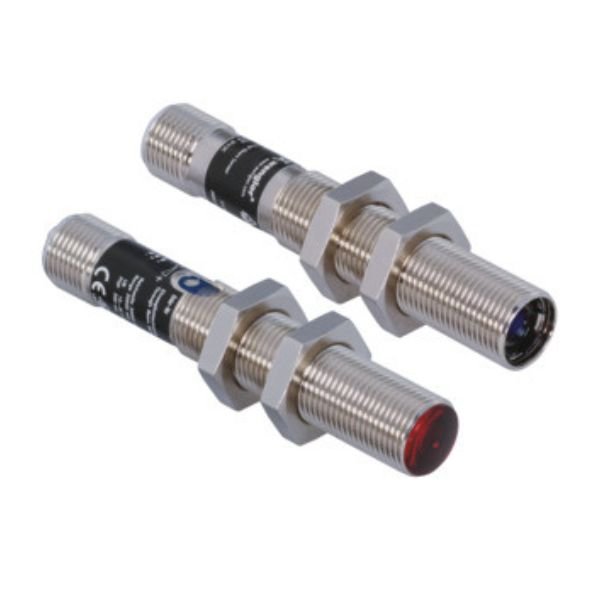

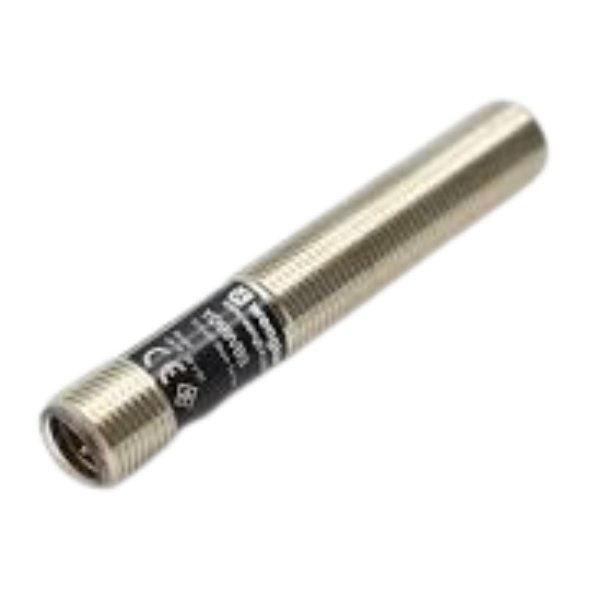

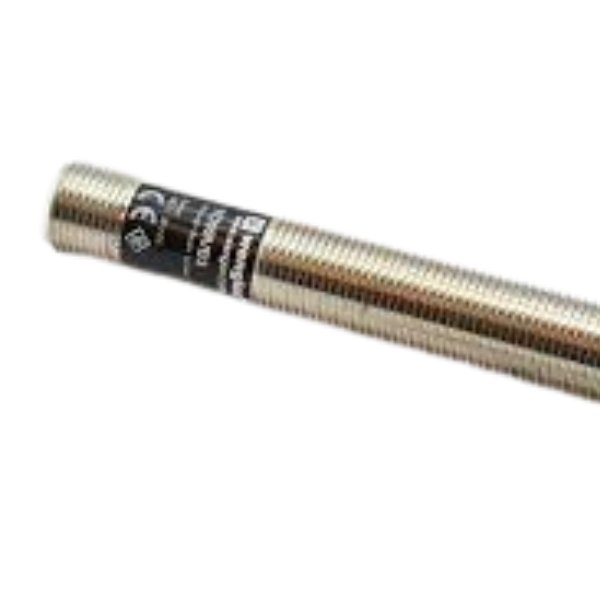

Wenglor YO99VB3 Through Beam Sensor

Product Note:

No product notes available.

Description

Wenglor YO99VB3 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Description Of Wenglor YO99VB3 Through Beam Sensor

Optical Data Wenglor YO99VB3 :

  • Range 20,000 mm
  • Smallest Recognizable Part 50 µm
  • Switching Hysteresis  < 15 %
  • Light Source Laser (red)
  • Service Life (T = +25 °C) 100,000 h
  • Laser Class (EN 60825-1) 2
  • Max. Ambient Light 10,000 Lux
  • Opening Angle 8 °

Electrical Data Wenglor YO99VB3 :

  • Sensor Type Receiver
  • Supply Voltage 10 … 30 V DC
  • Current Consumption (Ub = 24 V) < 15 mA
  • Switching Frequency 5 kHz
  • Response Time 100 µs
  • Temperature Drift < 10 %
  • Temperature Range -10 … 60 °C
  • Switching Output Voltage Drop < 2.5 V
  • Switching Output/Switching Current 200 mA
  • Short Circuit and Overload Protection yes
  • Reverse Polarity Protection yes
  • Protection Class III

Mechanical Data Wenglor YO99VB3 :

  • Setting Method Potentiometer
  • Housing Material CuZn, nickel-plated
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 4-pin

Safety-relevant Data Wenglor YO99VB3 :

  • MTTFd (EN ISO 13849-1) 4,271.54 a

Output Wenglor YO99VB3 :

  • PNP NO yes

Features

  • Switching frequency: 5 kHz
  • Smallest recognizable part: 0,05 mm

Applications

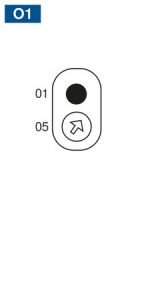

 05 = Switching Distance Adjuster 01 = Switching Status Indicator

05 = Switching Distance Adjuster
01 = Switching Status Indicator

Specifications

Optical Data

Range20,000 mm
Smallest Recognizable Part50 µm
Switching Hysteresis < 15 %
Light SourceLaser (red)
Service Life (T = +25 °C)100,000 h
Laser Class (EN 60825-1)2
Max. Ambient Light10,000 Lux
Opening Angle8 °

Electrical Data

Sensor TypeReceiver
Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 15 mA
Switching Frequency5 kHz
Response Time100 µs
Temperature Drift< 10 %
Temperature Range-10 … 60 °C
Switching Output Voltage Drop< 2.5 V
Switching Output/Switching Current200 mA
Short Circuit and Overload Protectionyes
Reverse Polarity Protectionyes
Protection ClassIII

Mechanical Data

Setting MethodPotentiometer
Housing MaterialCuZn, nickel-plated
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Safety-relevant Data

MTTFd (EN ISO 13849-1)4,271.54 a

Output

PNP NOyes

Downloads

Datasheet : Wenglor YO99VB3 Through Beam Sensor
