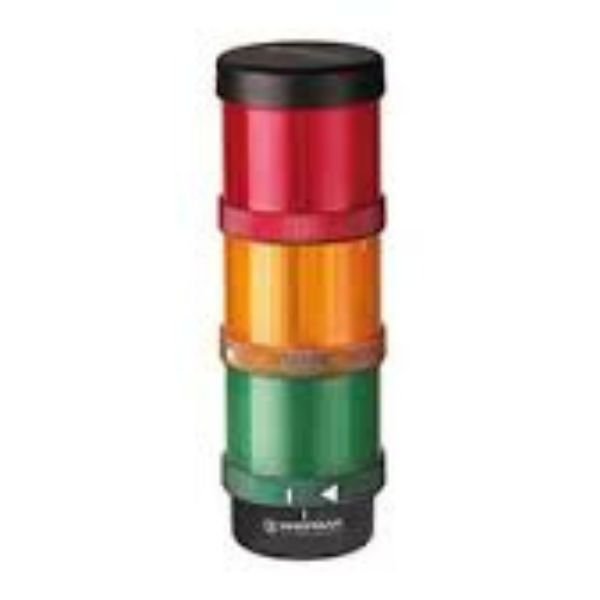

Werma KombiSign72

Product Note:

No product notes available.

Description

Werma KombiSign72 is a Leading industrial and logistics company that relies. Unlike conventional signaling devices, KombiSIGN 72 combines the highest level of flexibility (modular, twin elements), the best visibility from all positions (OmniVIEW), and simple installation (Poka Yoke).

The KombiSIGN 72 has a future-orientated design that can be easily networked to an MDC alternative SmartMONITOR or to the AndonSPEED call-for-action system. This saves time and money, throughout the entire process from purchasing, and installation, to daily use.

Werma KombiSIGN 72 Advantages

  • quick and easy installation or good visibility
  • permanent or flashing light
  • a high level of flexibility in light effects and signaling options or fewer part numbers
  • very good performance or an attractive price
  • good design or functionality The new KombiSIGN 72 means NO MORE compromises because we combine quick installation, top visibility, and outstanding flexibility.

Features

  • Smooth DESIGN: smooth surfaces prevent dirt gathering
  • Simple, intuitive installation (Poka Yoke – incorrect installation impossible)
  • High-tech: the Signal Towers can easily be retrofitted with SmartMONITOR or AndonSPEED
  • TwinLIGHT and TwinFLASH: Two light effects in one element – halves the number of part numbers
  • In ClassicLOOK or DesignLOOK to suit all machine housings
  • Clearly visible from all positions thanks to the OmniVIEW lens with no blind spots
  • Completely pre-assembled standard versions are available

Applications

  • Fault signalling
  • on machinery and equipment
  • on automated systems
  • in assembly plants, for example, in the automotive industry

Specifications

Mechanical data
Height212 mm
Voltage:5V (USB) AC/DC
Signal effect:TwinLight
Light colour:Green Red Yellow
Protection rating:IP65
Fixing:Tube mounting
MaterialsPA-GF
PC
Dome colourGreen
Red
Yellow
Housing colourBlack
Protection categoryIP65
ConnectionUSB
Cable entryThrough hole
Cable entry maximumd = 11 mm
Cable length1800 mm
Tension reliefNot present
Type of fixingTube mounting
Working temperature minimum-20°C
Working temperature maximum+50°C
Weight with packaging385 g
Product weight385 g
Electrical data
Operating voltage5V (USB)
Operating voltage typeAC/DC
Operating voltage frequency50Hz
Operating voltage tolerance+/- 0%
Rated operational voltage5 VDC
Rated operational current500 mA
Protection classProtection class 2
Pollution degree3
Request to external PSUSELV/PELV
connectivityUSB
Optical data
Light sourceLED
Light colourGreen
Red
Yellow
Optical signal imageTwinLight
Blink frequency1 Hz
Service life optical50,000 h minimum
Approval data
Conforms with CEYes (through the components)
WEEEYes
Conforms with RED directiveNo
Conforms with ATEX-directiveNo
Conforms with CCC-ExNo
Conforms with CCCNo
Conforms with ULNo
Conforms with FCCNo
Conforms with ICNo
EAC certificate availableYes
Conforms with UKCA (Importer)No
Conforms with CMIMNo
Conforms with AS-INo
ICAO CertificationNo
Conforms with DNVNo
Conforms with RoHS CNNo
Conforms with VdSNo
