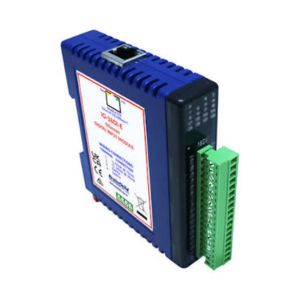

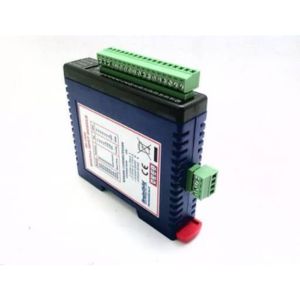

Brainchild IO-16DI Modbus IO Module

Brainchild IO-16DI Modbus IO Module These modules are used with HMI, PLC, or SCADA via Modbus RTU protocol. IO Studio is its PC software for setting communication. Data Acquisition Studio is its PC software for DAQ purposes.

Brainchild IO-16DI is a high-density, DIN-rail mounted Modbus RTU I/O expansion module that provides 16 isolated digital inputs. It allows PLCs, HMIs, paperless recorders, and SCADA systems to monitor discrete field signals (switches, proximity sensors, relay contacts, pulse outputs) over an RS-485 serial network.

Core Operational Functions

High-Density Discrete Monitoring: Acquires the ON/OFF state of up to 16 independent digital inputs over a single RS-485 two-wire serial interface.
Integrated High-Speed Counters: Each digital input channel doubles as a 32-bit pulse counter (up to 1 kHz input frequency), enabling totalization for flow meters, utility pulse meters, or part counts without needing dedicated counter cards.
Optical Isolation Protection: Features 1,000 V AC optical isolation between the input terminals, internal logic, and RS-485 bus to prevent ground loops and protect master controllers from electrical surges.
Modbus RTU Communication: Standard RS-485 serial interface supporting configurable baud rates (up to 115,200 bps) and DIP-switch or software-based slave node addressing (up to 127 modules per network).
On-Board LED Diagnostics: Includes status LEDs for power, RS-485 TX/RX activity, and individual channel logic states (1–16) for rapid visual field troubleshooting.

Specifications

Digital Inputs	16
No.of Counters	16
Isolation (Field&Logic)	1500 V RMS
Status Indication	LED for each channel
Power supply	“+12 V to +24 V”

Common specifications
Counter Resolution	32 Bit
Counter frequency	1 KHz
Pulse width	Min 500 Micro sec
Counter Mode	UP/Down
Digital input 0 level	0-6.5 V
Digital input 1 level	+12 to +24 V DC
Input Impedance	2200 ohms
Input filter	Max 6553 msec.


Digital Outputs	0
Type of Digital output	N.A
Maximum load current	N.A
Maximum load Voltage	N.A
Isolation (Field&Logic)	N.A
Status Indication	N.A


Watch dog timer	Available
Watch dog time	1-255 sec, adjustable

Features

Portable
Modbus connectivity
Simple setup and easy handing
Upto 128 Module on RS485 network
Isolated modules avalible for special applications
Low-cost IO modules addition to existing PLC system
Standard software for module configuration and trouble shooting
Date acquisiton software for data storage and Real-time analysis on PC
IO modules used with the third party softwares via Modbus RTU Protocol
Interface with field devices to provide real-time data for SCADA / PLC / HMI
LEDs on every modules for digital IO status, communication and power supply
Different types of IO Modules AI, AO, DI, DO, RTD, Thermocouples are available
Direct reading of temperature without scaling by using RTD and Themocouple Modules

Applications

Printed circuit board

Food and Pharmaceutical

Plastic injection molding

Textile industry

Laboratory
