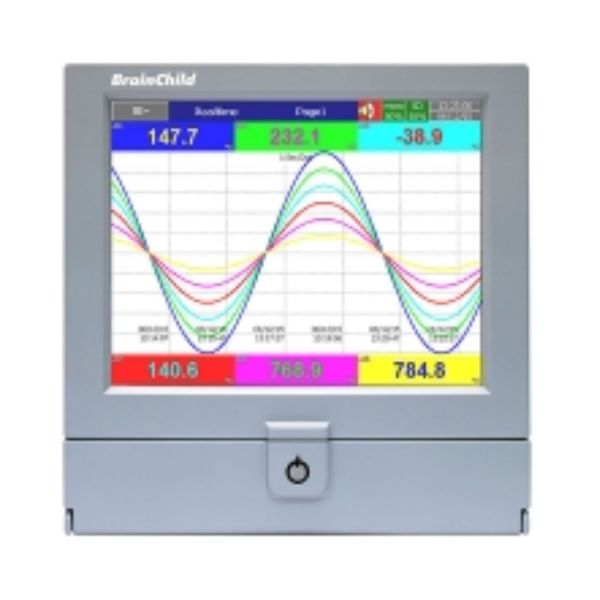

Brainchild PR20 Paperless Videographic Recorder

Brainchild PR20 Paperless Videographic Recorder is a paperless digital recorder for laboratories, factories and classrooms alike. It has a built-in high resolution 5.6-inch touchscreen display, 24 channels, plug & play IO cards, and internal Flash memory storage. Standard Ethernet and optional RS-232/RS-422/RS485 communication enable users to access onscreen data and setup remote monitoring via the RS serial interface or Ethernet networking. The PR20 paperlss chart recorder includes standard configuration software featuring a historical viewer.

The new PR series paperless recorders are launched in full product range with outstanding specifications and features. PR series includes a low-cost PR10, a popular PR20 and a high-end PR30. Recorders in 4.3” & 12.1” displays in addition to 5.6”, 100 msec. sampling rate, external channels, batch, custom display, more strict FDA 21 CFR part 11, handwriting messages, SD slot, 2 USBs, pulse input, field calibration, Web Server, email, 19 languages, IP65, and yet in shorter depth 167mm.

Specifications

Parameter	Specification
Manufacturer / Brand	Brainchild Electronic Co., Ltd.
Model Part Number	PR20 Series / PR-20
Focus Keyword Target	Brainchild PR20 Paperless Videographic Recorder
Display Type	5.6-inch TFT Color Touchscreen LCD ( $640 times 480$ pixels)
Input Channel Options	3, 6, 12, 18, or 24 Universal Analog Channels
Signal Inputs Accepted	Thermocouples (18 types), RTD (Pt100, Cu50, etc.), mA, mV, V
Sampling Rate	100 ms fast scan rate
Internal Storage	256 MB Flash Memory
Removable Storage	SD Card slot & Dual USB Host Ports (front and rear)
Network Protocols	Ethernet (Modbus TCP/IP), Web Server, FTP, Email Alerts
Power Supply Options	90–250 V AC (50/60 Hz) or 11–36 V DC
Enclosure Protection	IP65 Front Panel / IP20 Rear Chassis
Panel Cutout Size	$137 times 137 text{mm}$ (DIN Standard)

Features

5.6-Inch High-Resolution Touchscreen: Vibrant TFT LCD screen ( $640 times 480$ resolution) with intuitive touch navigation and multi-language support (19 languages).
Expandable Multi-Channel Input: Modular plug-and-play architecture supports 3, 6, 12, 18, or up to 24 universal analog channels.
Fast Data Acquisition Rate: High-speed sampling down to 100 milliseconds per channel for capturing rapid process transients.
Tamper-Proof Data Storage: 256 MB internal flash memory paired with SD card and front/rear USB ports for secure data archiving.
FDA 21 CFR Part 11 & Batch Control: Optional Plus firmware version supports multi-level security, audit trails, and batch recording routines.
Versatile Connectivity Options: Built-in Ethernet (Modbus TCP/IP) and optional RS-232/422/485 serial interfaces for remote SCADA integration.

Applications

Heat Treatment & Aerospace Metallurgical Processes: Temperature profile logging and survey compliance (AMS2750H) for multi-zone furnaces and kilns.
Pharmaceutical & Medical Manufacturing: Validated data tracking for bio-reactors, autoclaves, and cleanrooms requiring FDA 21 CFR Part 11 compliance.
Food Processing & HACCP Monitoring: Multi-channel thermal recording during pasteurization, canning, and industrial baking processes.
Water & Environmental Telemetry: Process parameter logging for pH, flow rate, pressure, and dissolved oxygen across municipal plants.
