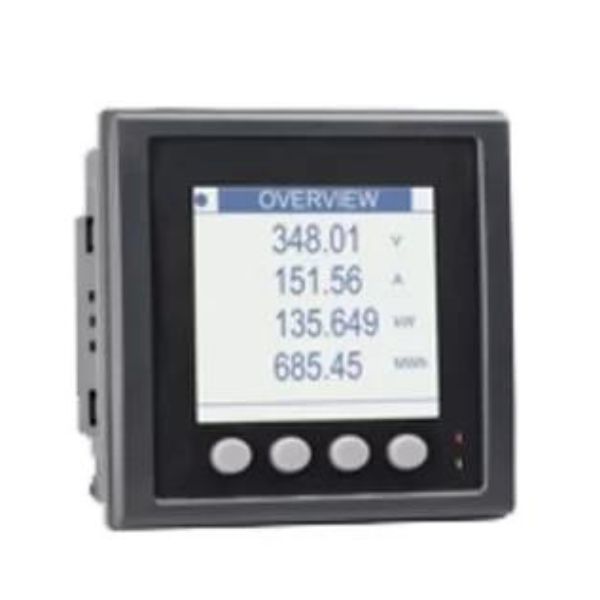

CS Instruments CS PM 5110 Effective Power Meter

Product Note:

No product notes available.

Category: Others Tags: CS Instruments, CS Instruments CS PM 5110, Power Meter

Description

CS Instruments CS PM 5110 Effective Power Meter

CS Instruments CS PM 5110 Effective Power Meter: All measured data are transferred digitally (Modbus) to DS 500 mobile/ DS 400 mobile and can be recorded there. Digital data transfer to the DS 500/DS 400 via RS 485 – Modbus. Install construction for the CS PM5110, on the top hat rail. Connection cable for probes 5 m, with open ends; Connection cable for probes 10 m, with open ends. For panel mounting. Current transformer up to 2000 A connectable.

The CS Instruments product portfolio includes measuring devices for numerous applications in compressed air and gas measurement. Both small industrial companies and large OEM customers, for example from the automotive industry, rely on our reliable measuring instruments made in Germany and are fully supported by our worldwide dealer and partner network.

Features

for panel mounting. Measures voltage, and current and calculates:

Active power [kW]
Apparent power [kVA]
Reactive power [kVar]
Active energy [kWh]
cos phi

Applications

for panel mounting. Measures voltage, and current and calculates

Specifications

Parameters: Voltage (Volt)
Current (Ampere)
Cos phi
Effective power (kW)
Apparent power (kVA)
Reactive power (kVar)
Active energy (kWh)
Power frequency (Hz)
All parameters are transferred digitally to DS 500/
DS 400.
Accuracy current
measurement:
± 0.5% from 1 to 6 A
Accuracy voltage: ± 0.5% from 50 V to
277 V
Accuracy active
energy:
IEC 62053-21 Class 1
Interfaces: RS 485 (Modbus protocol)
Measuring range: Voltage measurement
max. 480 V
Dimensions: 96 x 96 x 78.5 mm (W x
H x D)
Operating temperature:
-10…+55 °C

Downloads

Datasheet : CS Instruments CS PM 5110 CurrentEffective Power Meter
