CS Instruments DS 52-Set Dew Point Measurement for Adsorption Dryers

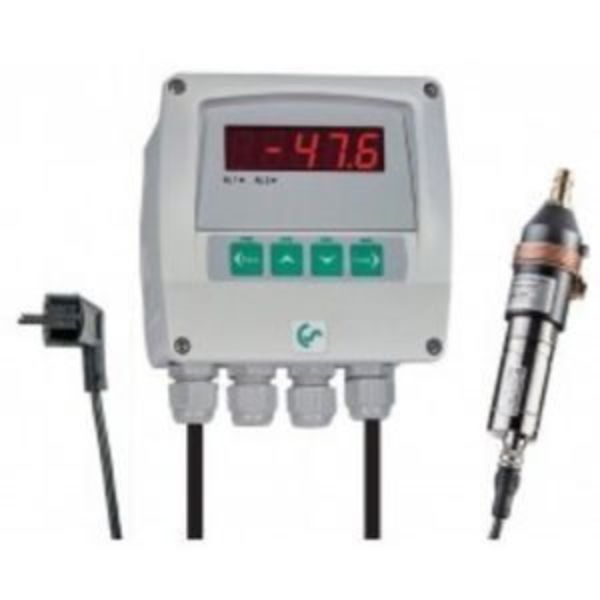

CS Instruments DS 52-Set Dew Point Measurement for Adsorption Dryers The measuring range of -80…20°Ctd makes the dew point set DS 52 with alarm the ideal dew point monitor with analog output 4…20 mA. The dew point sensor FA 410 is extremely long-term stable and can be installed and removed quickly and easily under pressure by means of the screwable measuring chamber including quick coupling. The dew point set is supplied and ready for a plug-in, i.e. everything is completely wired. The alarm values can be freely adjusted.

Features

System ready for plug-in: Everything completely wired
No time-consuming studying of the instruction manual
2 alarm contacts (230 VAC, 3 A) pre- and main alarm freely adjustable
4…20 mA analogue output
Option alarm unit: Buzzer and continuous red light

Applications

Dew point monitoring in the fruit and vegetable sector

Specifications

Dimensions: 118 x 92 x 93 mm
Display: LED red, 7 segments, height: 13
mm, 5 digits, 2 LED
for alarm relay
Keypad: 4 keys
Input: dew point sensor
FA 410
Power supply: 230 VAC, 50/60 Hz;
Option: 24 VDC or
110 VAC 50/60 Hz
Alarm outputs: 2 x relay output,
changeover contact,
250 VAC, max. 3 A
Operating temperature:
-10…+60 °C (storage
temp. -20°C…+80°C)
Alarm
thresholds:
freely adjustable
Hysteresis: 2 °Ctd
Analogue output:
4…20 mA = -80…20
°Ctd

Downloads

Datasheet : CS Instruments Dew Point Measurement DS 52-Set for Adsorption Dryers
