CS Instruments DS 52 - Digital Process Meter

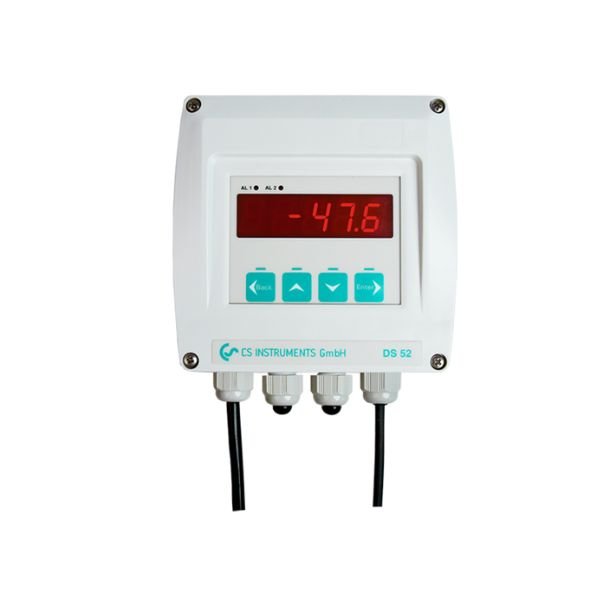

In wall housing for 0(4)…20 mA signals. With the digital process meter DS 52 in a shapely wall housing the annoying search and the mounting into a suitable plastic housing is no longer necessary. DS 52 disposes of 2 potential-free alarm contacts (switch-over contacts) which can be charged with maximum 230 VAC, 3 A. The alarm limits can be adjusted via the keys. The display is supplied with 230 VAC and disposes of an internal mains unit which provides a voltage of 24 VDC/100 mA for the sensor. Free screwing clamps are available for forwarding the (0) 4…20 mA signal to superordinated systems.

Features

  • Integrated in a shapely wall housing
  • Suitable for all customary sensors with 0(4)…20 mA signal
  • Easy operation
  • 2 relay outputs (230 VAC, 3 A)

Applications

  • Pressure monitoring with optional alarm unit
    (buzzer + continuous light)
  • Temperature monitoring with alarm

Specifications

  • Dimensions: 118 x 133 x 92 mm
    (WxHxD)
  • Display: LED, 5-digit, height 13 mm, 2
    LEDs for alarm
  • Keypad: 4 keys:
    Enter, Back, Up, Down
  • Sensor input: For sensors with 0
    (4)…20 mA signal. Can be
    connected in 2-/3-/4-wire
    technology
  • Accuracy: Max. +/- 20 µA,
    typically +/- 10 µA
  • Burden: 100 Ω
  • Sensor supply: 24 VDC, max. 100 mA
  • Power supply: (option):
    230 VAC, 50/60 Hz
    (24 VDC or 110 VAC)
  • Outputs: 2 x relay output, changeover
    contact, 250 VAC, max. 3 A
  • Alarm thresholds: Freely adjustable via keypad
  • Hysteresis: Freely adjustable via keypad
  • Operating temperature:
    -10…+60 °C
    (Storage temp.: -20…+80 °C)
  • Control menu: Can be locked via code for
    unauthorised access
