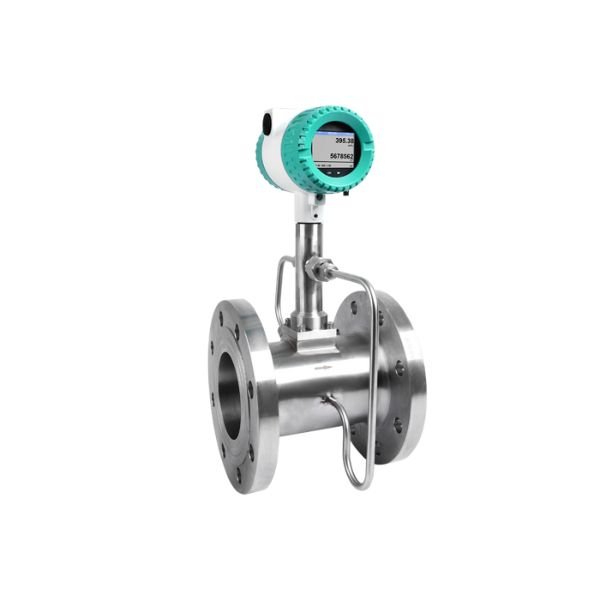

CS Instruments VX 570 – Vortex Flow Sensor For Steam, Gases and Liquids

CS Instruments VX 570 – Vortex Flow Sensor For Steam, Gases and Liquids the high-precision all-rounder with integrated pressure and temperature compensation

CS Instruments VX 570 – Vortex Flow Sensor For Steam, Gases and Liquids the high-precision all-rounder. Record and reduce your consumption and increase your sustainability with the VX 570. Monitor your consumption of a wide range of media with just one sensor

FIELD OF APPLICATION CS Instruments VX 570 :

• Measurement of saturated steam or superheated steam
• Measurement of liquids
• Measurement of mixed gases
• Measurement of corrosive media

Benefits at a glance CS Instruments VX 570 :

• Measurement of standard volume flow, operating volume flow, mass flow
• Measurement at high temperatures of up to 350°C
• Measurement up to 63 bar(g)
• Suitable for unknown/changing gas compositions and mixed gases
• Aggression resistant – all parts in contact with media made of stainless steel
• Not sensitive to vibrations due to reference vibration measurement
• No moving parts

Features

  • Measurement of standard volume flow, operating
    volume flow, mass flow
  • Measurement at high temperatures of up to 350°C
  • Measurement up to 63 bar(g)
  • Suitable for unknown/changing
    gas compositions and mixed gases
  • Aggression resistant – all parts in contact with
    media made of stainless steel
  • Not sensitive to vibrations due to
    reference vibration measurement
  • No moving parts

Applications

  • Measurement of saturated steam or superheated steam
  • Measurement of liquids
  • Measurement of mixed gases
  • Measurement of corrosive media

Specifications

  • Measuring range: See table
  • Measured medium: Primary single-phase gases, mixed gases, saturated steam, superheated steam and liquids
  • Accuracy: Volume flow (m³/h), Mass flow (kg/h) or standard volume flow (Nm³/h)
  • Gas / Steam: ± 1 % of m.v., (Re > 20,000), ± 2 % of m.v., (10,000 < Re < 20,000)
  • Liquids: ± 0.75 % of m.v., (Re > 20,000), ± 2 % of m.v., (10,000 < Re < 20,000)
  • Gas / Steam: ± 1.5 % of m.v., (Re > 20,000), ± 2.5 % of m.v., (10,000 < Re < 20,000)

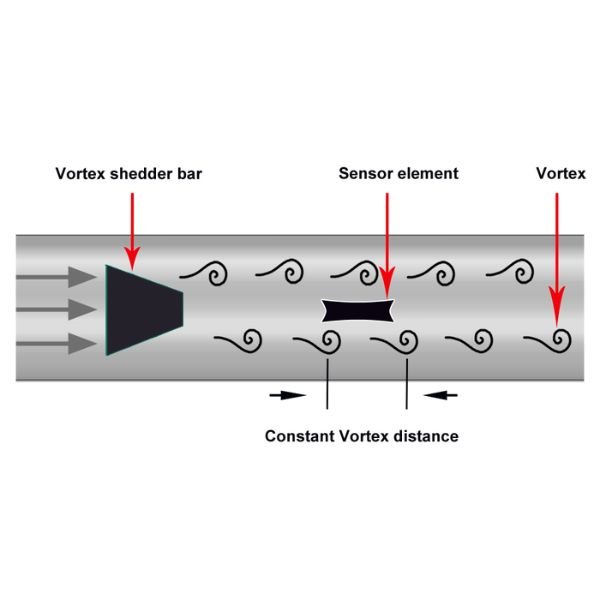

  • Measuring principle: Vortex – vortex frequency measurement
  • Process temperature: -40…+350°C
  • Process pressure: up to 63 bar(g)
  • Protection class: IP67
  • Material measuring section and parts in contact with medium: Stainless steel 304
  • Material display unit: Aluminium – die casting
  • Signal outputs: As standard:
    RS 485 (Modbus-RTU), 3x 4…20 mA,
    Optional: Ethernet interface
  • Power supply: 18…36 VDC
  • Measuring span: Gases: 1:30
    Vapour: 1:35
    Liquids 1:23
  • Viscosity DN 15 ≤ 4 mPas
    DN 25 ≤ 5 mPas
    DN 40…DN 300 ≤ 7 mPas
  • Repeatability: ± 0.3 % of m.v.
  • Process connection: Flange DIN EN1092-1
    Flange ANSI
    Wafer type
