VSE VTR Turbine Flow Meter

Product Note:

No product notes available.

Description

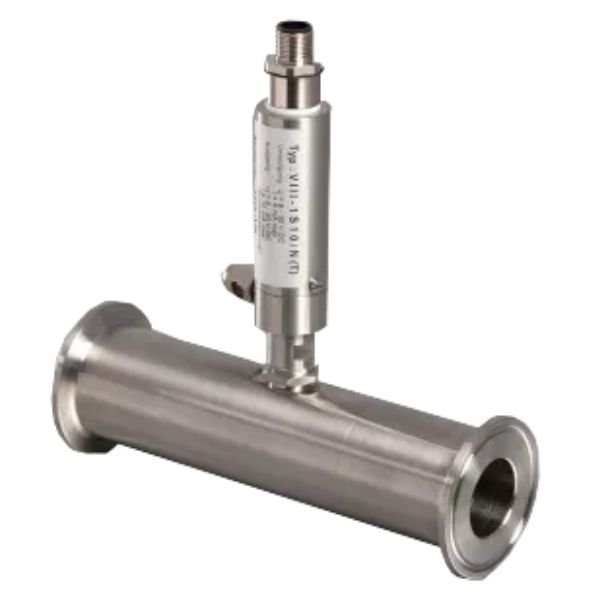

VSE VTR Turbine Flow Meter comprises a rotor, the housing body, and a measurement pick-up. Thanks to the specific internal diameter, the speed of the turbines is directly proportional to the flow.

VSE VTR Turbine Flow Meter Descriptions

All flow meters in the VTR series are individually calibrated. A wide range of electronic evaluation and display units are also available to our customers.

Turbine flow meters are precise and reliable measuring instruments, designed for a wide range of applications. Even under the most difficult application conditions in the oil, petrochemical, and chemical industries as well as in other industrial sectors, the sensors of the VTR series can be installed.

The range of nominal widths spans from 10 mm to 500 mm for the flange version as well as from 10 mm to 50 mm for the version with a threaded connection. All VTR flow meters are individually calibrated. A wide range of electronic evaluation and display devices is available.



Features

  • Flow range 110 l/h to 4500 m³/h
  • Pressure range up to 250 bar
  • Temperature range – 40°C to +120°C
  • Frequency range up to 1300 Hz
  • Viscosity range 1 to 5 cSt

Advantages

  • For a wide range of applications in even the most challenging conditions
  • Individual calibration of each flow meter
  • Large choice of nominal diameters between DN 50 and DN 100
  • Full stainless-steel design
  • Large temperature and pressure ranges

Applications

  • Water-like substances
  • Water
  • Oils
  • Petrochemicals

Specifications

Response Time< 50 ms for sensors up to DN 40 – longer response times for larger nominal diameters and therefore larger rotor mass



Filter requirementsFor safe operation of the flow meter, we suggest filtration requirements in order to avoid damages due to contamination. We would be pleased to provide you with details.
Cable ConnectionA 4- or 2-connection shielded cable with PUR insulation is recommended. Cross-section: 0.5 mm2
Frequency3 up to 1,000 Hz
Electrical ConnectionVSE Standard Plug
Mechanical ConnectionFlange appropriate ANSI or DIN; other specifications on request Threading: up to DN 50, connections with NPT or pipe threads (BSP)
Maximum PressureThreaded connections: maximum 250 bar; Flange connections: according to flange specifications.
Linearity+/– 0.5 %
Repeatablitiy+/– 0.5 %
Pressure Drop280 mbar at 100 % of the measurement range (density 1, viscosity 1 cSt)
Temperature Range– 40°C to + 120°C (– 40°F to + 248°F)
