Description

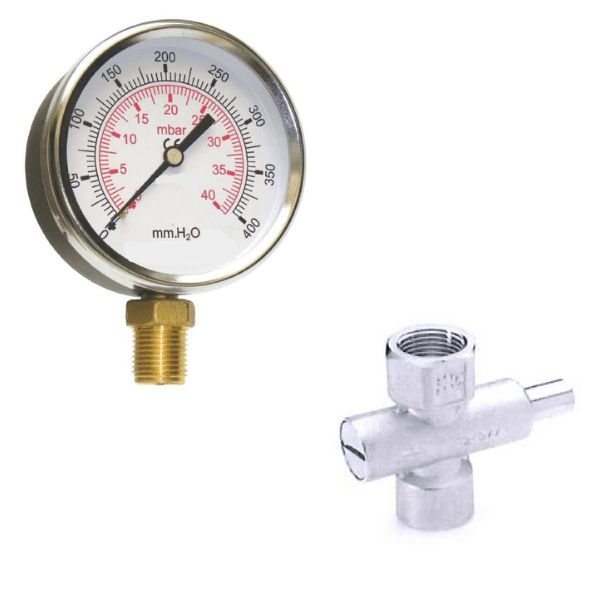

Delta-Elektrogas MG Pressure Gauge for Gas are robust instruments suitable for fast measurement on site. Different dimensions and materials allow us to find the proper solution for every installation. Delta-Elektrogas MG Pressure Gauge for Gas is available with display dimensions Ø63, Ø80, and Ø100. A button valve type ME can be installed to prevent damage due to pressure surges.

In 1961 Elettromeccanica DELTA s.p.a. was founded in Arcade (TV) with the aim of designing and manufacturing oil burners with mechanical atomization. Today, Elettromeccanica DELTA and its brand Deltapumps and Elektrogas are leading manufacturers of gear oil pumps and safety control valves, exported in more than 60 countries in the world.

Features

These pressure gauges are available with display dimension Ø63, Ø80 and Ø100. The connection is radial with male thread ¼” for Ø63, 3/8” for Ø80 and ½” for Ø100.
Manometers are capsule types for pressure till 600 mbar, for higher pressure they have a Bourdon tube.
They are designed in compliance with EN 837-1 and 3.
The accuracy is ± 1,6% of full scale.
They are suitable for ambient temperature -20/+60°C. If temperature of process medium is
higher, proper devices shall be used to cool it before reaching the instrument (e.g. dissipators,
capillaries).
Continuous operating pressure can be max 75% of full scale.
ME valve is a push-button valve which applies pressure to gauge only when it is pushed, in
normal condition manometer is relieved of pressure. The installation of this valve extends life of pressure gauge and reduces possibilities of wrong reading (e.g. in case of dirty the pressure
gauge can block in a position different from actual pressure).
Suitable for air and non-aggressive gaseous fuels (families 1-2-3 EN437). Special versions are
available for use with aggressive gases (e.g. biogas).
This figure shows an example of typical installation in combination with other Elektrogas
devices.

Applications

MG pressure gauges are robust instrument suitable for fast measurement on site.
MG are available with display dimension Ø63, Ø80 and Ø100.
A button valve type ME can be installed to prevent damages due to pressure surges

Specifications

Display dimension Ø63, G1/4, Ø80 and connection (male thread) G3/8, Ø100, G1/2
Accuracy ± 1,6%
Ambient and media temperature -20°C / +60°C
Housing Brass, steel and transparent glass
Enclosure protection IP32 (EN60529)
Pressure ranges

0 – 25 mbar
0 – 40 mbar 0 – 1 bar
0 – 60 mbar 0 – 1.6 bar
0 – 100 mbar 0 – 2.5 bar
0 – 160 mbar 0 – 4 bar
0 – 250 mbar 0 – 6 bar
0 – 400 mbar 0 – 10 bar
0 – 600 mbar

Continuous operating pressure 75% of full scale
(15 minutes and more)

Version and media type Standard version for air and Stainless steel version gaseous fuels in accordance for chemically aggressive with EN437 (fam. 1-2-3) gaseous fuels (e.g. Biogas)

Materials in contact Brass AISI 304 with media Bronze AISI 316

ME button valve

Connection (female thread) G1/4, G3/8, G1/2
Ambient and media temperature -20°C / +60°C
Maximum operating pressure 6 bar
Materials in contact Brass and NBR rubber with media Suitable only for air and gaseous fuels in accordance with EN437 (fam. 1-2-3)

Description

Features

These pressure gauges are available with display dimension Ø63, Ø80 and Ø100. The connection is radial with male thread ¼” for Ø63, 3/8” for Ø80 and ½” for Ø100.

Manometers are capsule types for pressure till 600 mbar, for higher pressure they have a Bourdon tube.

They are designed in compliance with EN 837-1 and 3.

The accuracy is ± 1,6% of full scale.

They are suitable for ambient temperature -20/+60°C. If temperature of process medium is
higher, proper devices shall be used to cool it before reaching the instrument (e.g. dissipators,
capillaries).

Continuous operating pressure can be max 75% of full scale.

ME valve is a push-button valve which applies pressure to gauge only when it is pushed, in
normal condition manometer is relieved of pressure. The installation of this valve extends life of pressure gauge and reduces possibilities of wrong reading (e.g. in case of dirty the pressure
gauge can block in a position different from actual pressure).

Suitable for air and non-aggressive gaseous fuels (families 1-2-3 EN437). Special versions are
available for use with aggressive gases (e.g. biogas).

This figure shows an example of typical installation in combination with other Elektrogas
devices.

Specifications

0 – 25 mbar

0 – 40 mbar 0 – 1 bar

0 – 60 mbar 0 – 1.6 bar

0 – 100 mbar 0 – 2.5 bar

0 – 160 mbar 0 – 4 bar

0 – 250 mbar 0 – 6 bar

0 – 400 mbar 0 – 10 bar

0 – 600 mbar

Continuous operating pressure 75% of full scale
(15 minutes and more)

Version and media type Standard version for air and Stainless steel version gaseous fuels in accordance for chemically aggressive with EN437 (fam. 1-2-3) gaseous fuels (e.g. Biogas)

Materials in contact Brass AISI 304 with media Bronze AISI 316

ME button valve
