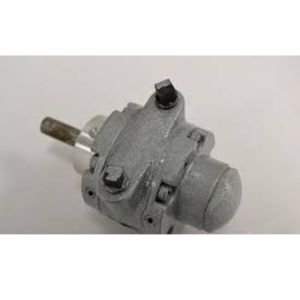

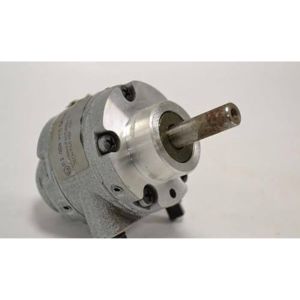

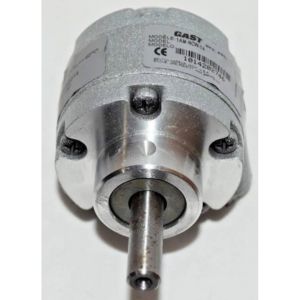

Gast 1AM-NCW-14 Air Motor

Gast 1AM-NCW-14 Air Motor The compact and portable 1AM/1UP series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Core Operational Features

Clockwise Rotation (CW): Engineered specifically for applications requiring fixed right-hand rotational drive, ensuring correct impeller or gear engagement without reversing air port connections.
Intrinsically Safe & Explosion-Proof: Operates completely on compressed air, generating no electrical sparks, heat build-up, or ignition hazards in Class I Div 1 / ATEX environments.
Variable Speed & Flexible Torque: Speed can be continuously adjusted from $500$ to $10,000\text{ RPM}$ by regulating inlet line pressure or throttling the exhaust air flow.
Stall-Proof Operation: Can handle continuous stalling under high mechanical torque resistance without burning out windings or damaging internal vanes.

Specifications

Max Air Consumption: 20.5 cfm ( 34.83 m3h )
Max Power: 0.42 hp ( 0.31 kW )
Max Pressure: 7 bar ( 101.53 psi )
Max Sound Level: 78 dB(A)
Max Speed: 10000 rpm
Max Torque: 5.6 in-lb ( 0.63 N m )
Mount: HUB
Output Shaft Type: Straight
Port Size and Type: 1/8″ NPT
Regulatory Approval: CE, ATEX
Rotation: Clockwise
Stainless Steel: NO
Starting Torque @ 80psi: 3.9 in-lb ( 0.44 N m )
Torque Max Speed: 2.75 in-lb ( 0.31 N m )
Vanes: 4
Weight: 2 lbs ( 0.91 kg )

Features

Hub mounting
Any plane operation
Muffler AF350
II, 2 GD c T4

Applications

Recommended

Filter AH100F
Regulator AH101R
Gauge AA806
Lubricator AH102L
Oil AD220 – 1 quart (.94 liters)
Repair kit K200 (Single Rotation)
Repair kit K201 (Reversible)
Repair kit K278 (8 Vane, Reversible)
