Description

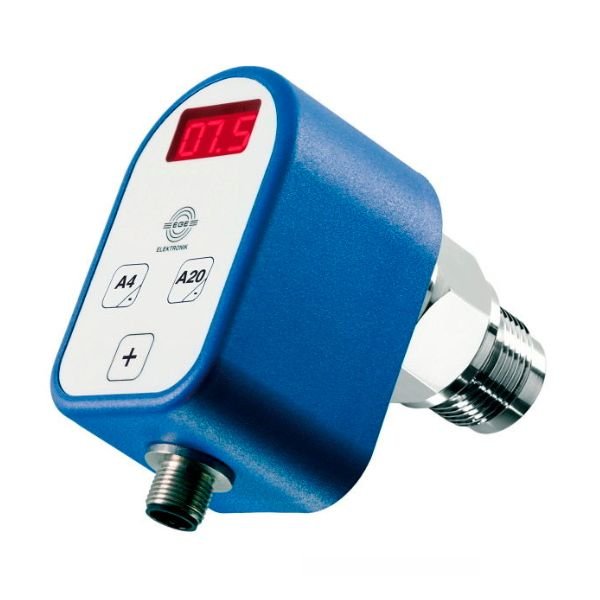

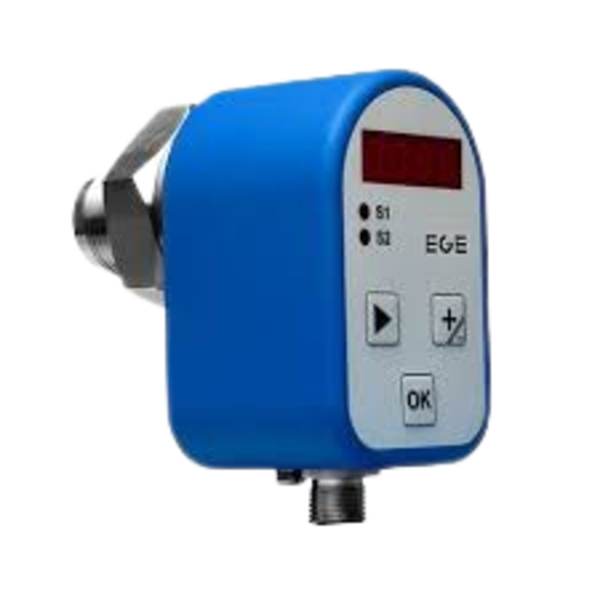

EGE Pressure sensors

EGE pressure sensors feature a flush aluminum ceramic gauge head and are thus suitable for monitoring pressures and fill levels of even polluted and viscous media.

Usage

This high-performance device monitors pressure levels in pipes and containers. It can record fill levels with an accuracy of one centimeter in containers that stand five meters tall. Measurement instruments with a 1000-bar measurement range have proven to be very useful for these types of applications. When measuring the fill level of water, 10 bar of pressure corresponds to 10 cm of water height. The instrument displays the pressure value digitally. The suspended matter inside the container will not affect the measurement either – as long as the matter does not disturb the pressure distribution in the area surrounding the sensor membrane. The pressure sensor is a compact device that contains all the measurement and evaluation electronics. It is designed for use with 24 V DC. It also provides two PNP switch outputs and a 4 to 20 mA current output. Additionally, we offer a model with 2 switching points and a rapid programming feature that can be used, for example, for minimum and maximum detection in a container.

Features

Compact model with digital display
monitoring in pipes and containers
pressure up to 16 bar
level up to 10 m (-+ 1 cm)
programmable

Applications

pressure levels in pipes and containers.

Specifications

The medium contacts the sensor’s ceramic gauge head directly.
A pressure-mediating fluid is not used.
The dry capacitive gauge head provides a high level of overload stability.
The medium pressure is a maximum of 0.03 mm.
Pressure range of 0 to 16 bar to withstand an overload
Pressure spike of up to 64 bar without being damaged.
When the overload passes, the membrane returns to its neutral position without exhibiting any hysteresis.

Downloads

Datasheet : EGE Pressure sensors
