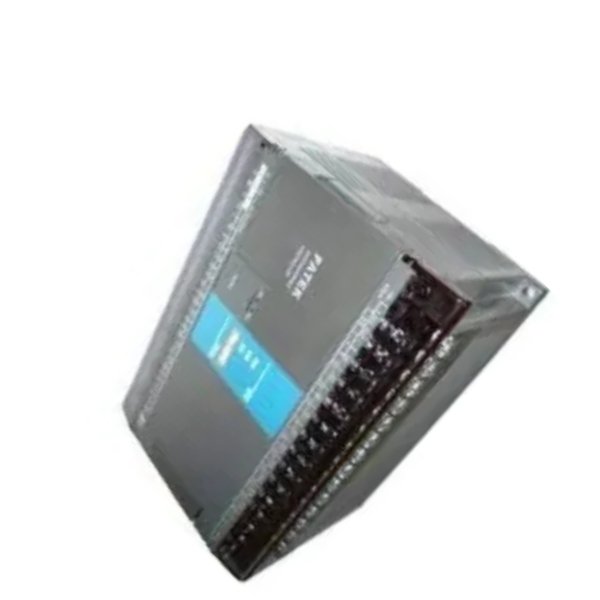

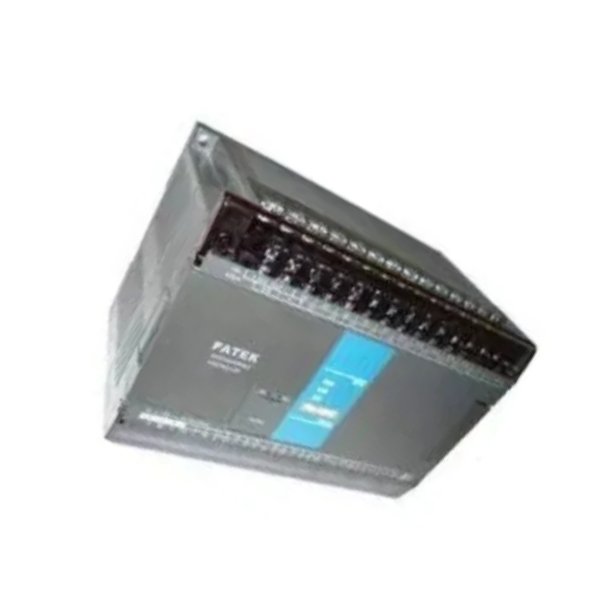

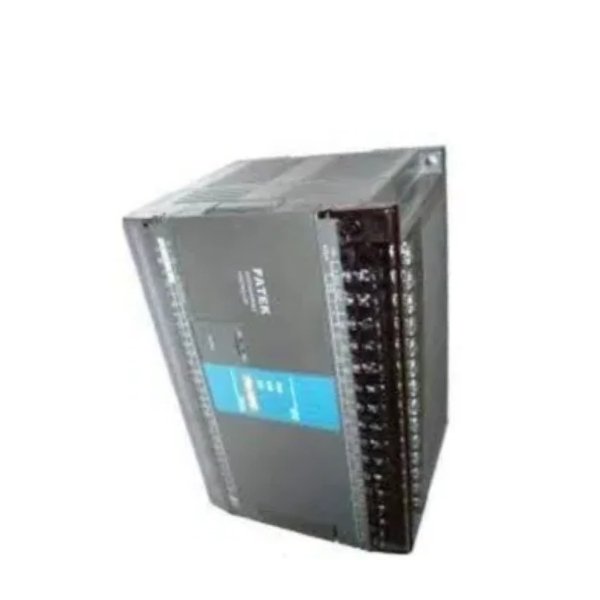

Fatek - FBs-32MN PLC NC Positioning Main Unit

The FBs-PLC’s design incorporates a “System on Chip” (SoC) developed in-house by Fatek Corporation. The BGA chip consists of over 120,000 gates which integrates powerful features such as
a Central Processing Unit (CPU), Memory, Hardware Logic Solver (HLS), 5 high-speed communication
ports, 4 sets of hardware high-speed counters/timers, 4 axes of high-speed pulse outputs for NC
positioning control (with linear interpolation), 16 high-speed interrupts and captured inputs. The FBsPLC represents high functionality and reliability with exceptional value compared to other PLC’s in its class.

Features

  • 4 sets (2 axes) 920KHz 5VDC digital differential input, 16 points 24VDC digital input (4 points high speed 200KHz, 8 points medium speed total 5KHz)
  • 4 sets (2 axes) 920KHz 5VDC digital differential output, 8 points relay or transistor output (4 points high speed 200KHz)
  • 1 RS232 or USB port (expandable up to 5)
  • Built-in RTC
  • Detachable terminal block

Applications

  • Basic Main Units (MA)
  •  Basic Main Units (MA/MB)
  •  Advanced Main Units (MC)
  •  NC Positioning Main Units (MN)

Specifications

Specification
FBs-32MNR
FBs-32MNT/J
Digital Input
5VDC
Differential
Ultra high speed
(920KHz)
4 points(2 axes)
24VDC
High speed (200KHz
4 points
Medium speed
(Total 5KHz)
8 points
Low speed
4 points
Digital output
Relay
8 points
5VDC
Differential
Ultra high speed
(920KHz)
4 points(2 axes)
Transistor
High speed (200KHz)
4 points
Low speed
4 points
Communication
Port
Built-in
1 port (Port0, USB or RS232)
Expandable
4 ports (Port1~4, RS485 or RS232 or Ethernet or GSM or ZigBee)
Calendar
Built-in
Built-in power supply
SPW24-AC/D12/D24
Wiring mechanism
7.62mm detachable terminal block

Downloads

Datasheet: Fatek – FBs-32MN PLC NC Positioning Main Unit
