Fcon CUBE MFC Digital Mass flow controller 1000 series and control power supply are all-in-one compact flow control unit. It can be used by connecting the gas fitting and power outlet. The suppression of Flow surge (overshoot) at the start (Requires more than 30 seconds of the interval).

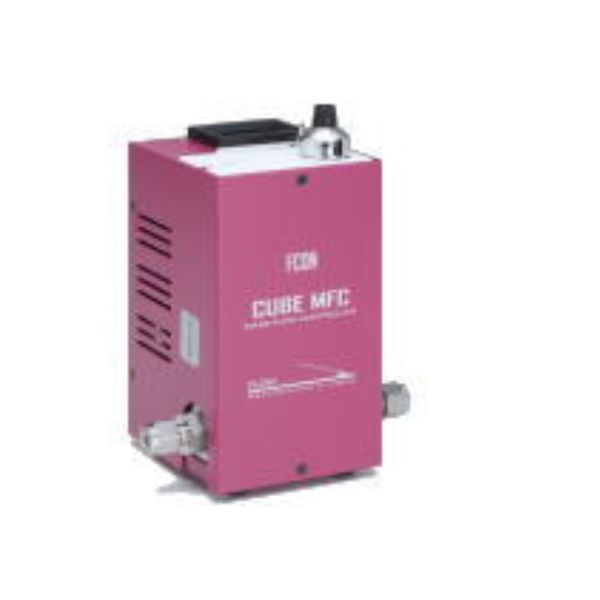

FCON CUBE MFC Series Mass Flow Controller
Fcon CUBE MFC Digital Mass flow controller 1000 series and control power supply are all-in-one compact flow control unit. It can be used by connecting the gas fitting and power outlet.
- Input & Output Signal ： Analog (0～5VDC).
- Equipped with monitor terminal for setting/output voltage on the back.
- This product is ideal for use on the desktop, space-saving.
- If you mount the main body and set the operation part in the panel cut part, it can be incorporated in various kinds of equipment.
- Compact and lightweight integral unit
- Easy flow Measuring / Controlling
- Flow rate display and setting functions
- SET / OUT switching function
- External output terminals are provided on the rear
For Gas Mass Flow Controller, Mass Flow Meter, Gas Mixer, Gas Flow Control
|Model||CUBE MFC 1005 / 1020 / 1030 / 1050 / 1100|
|Gases||Most gases (e.g., air, nitrogen, carbon dioxide, argon, hydrogen, helium, methane, oxygen)|
|Valve type||Normally Open|
|Flow rate control range||5-100% F . S.|
|Accuracy||±2%F. S. ( Accuracy guaranteed between 15-35°C)|
|Operating differential pressure||50-300kPa (conform to built-in Mass flow controller specification)|
|Pressure Resistance||1MPa (G)|
|Leak Integrity||1×10-7Pa•m3/ sec (He)|
|Operating temperature||5-50°C less than 85% RH|
|Wetted surface material||SUS316, PTFE, Fluoro-Rubber|
|Standard fitting**||1/4in. SWL (equivalent), One-touch fittings|
|Mass flow control||10-turn potentiometer|
|Input power||AC100 – 240V|
|Output terminal||Setting the signal /Output signal|
At F CON, flow rates (SCCM, S LM) are converted to values at 0ºC, 1 01.3kPa abs (1atm) for calibration.
For other fittings, please contact us.
