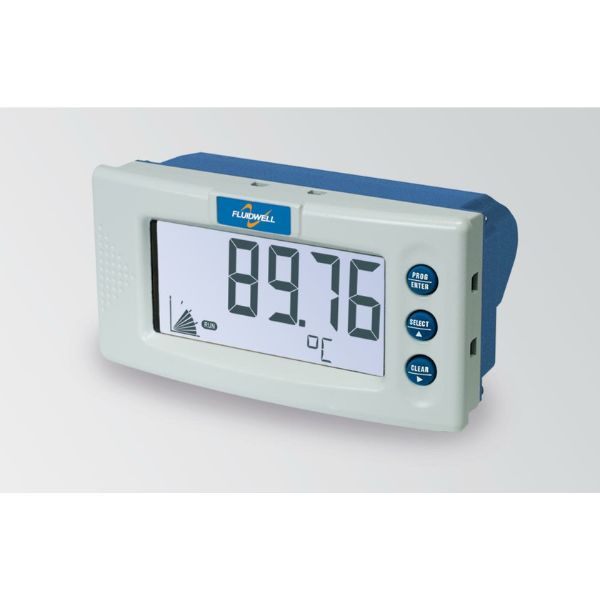

Fluidwell D040 DIN Panel Mount Temperature Indicator

Fluidwell D040 DIN Panel Mount Temperature Indicator Watertight DIN panel mount indicators are the better alternative for your existing, not waterproof panel meters.

Fluidwell D040 DIN Panel Mount Temperature Indicator Watertight DIN panel mount indicators are the better alternative for your existing, not waterproof panel meters. The D040 is a straightforward, panel mount temperature indicator. The measuring unit to be displayed is selected through an alfa-numerical configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weatherproof and user-friendly solution! The configuration of the Span, offset, and a number of decimals is done through software functions, without any sensitive dip-switches or trimmers.

Fluidwell D040 DIN Panel Mount Temperature Indicator Advantages

  • Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die-cast aluminum, allowing even big water jets and total immersion.
  • Familiar with easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost, and aggravation.

Features

  • Displays actual temperature and measuring unit.
  • Very large 26mm (1″) digits.
  • Piegraph indication: ten segments.
  • Number of digits for temperature: 5½.
  • Selectable on-screen engineering units: °C – °F – K.
  • Auto backup of all settings.
  • Ambient temperature: -40°C to +80°C (-40°F to 176°F).
  • LED backlight option.
  • Easy configuration with clear alphanumerical display.
  • Aluminum DIN front panel of 144 x 72mm (5.67” x 2.83”) according DIN 43700 / IEC 61554.
  • Various accessories are available for this product.



Applications

  • The D040 fits in applications where a basic temperature measurement display is required without temperature monitoring.
  • The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.

Specifications

Signal Inputs

Temperature Inputs

  • (0)4 – 20mA.
  • 0 – 10V DC.

Signal Outputs

Alarm outputs

  • None

Analog outputs

  • None

Supply

Power Supply

  • Basic: 8 – 30V DC (no real sensor supply).
  • Long life Lithium battery.
  • 4 – 20mA input Loop-powered.
  • 24V AC/DC + sensor supply.
  • 115 – 230V AC + sensor supply.

Sensor Supply

  • 2, 12 & 24V DC.

Hazardous Area

Intrinsically Safe

  • For Intrinsically Safe applications we recommend the F-Series.

Downloads

Datasheet: Fluidwell D040 DIN Panel Mount Temperature Indicator
