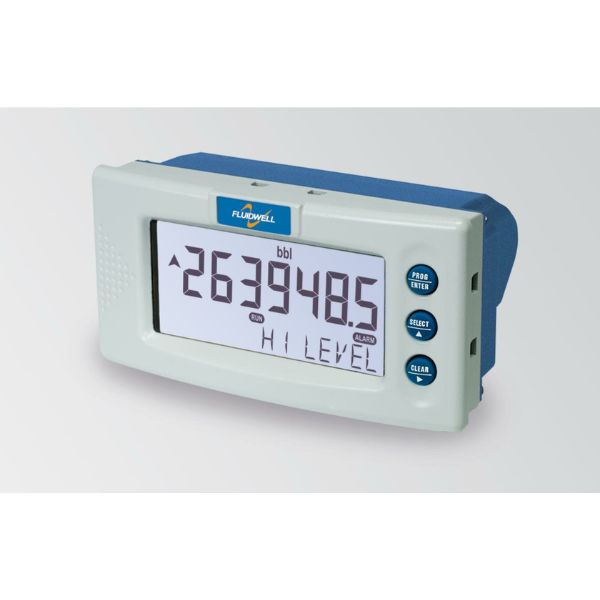

Description of Fluidwell D073 DIN Panel Mount Level Monitor

is a versatile, panel mount level monitor with a continuous level monitoring feature. It offers the facility to set one low-level and one high-level alarm value. If desired, an ignore function can be set up to allow for an incorrect level for a certain period of time. Watertight DIN panel mount indicators are the better alternative for your existing, not waterproof panel meters.

Fluidwell D073 DIN Panel Mount Level Monitor Advantages

Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die-cast aluminum, allowing even big jets of water and total immersion.
Familiar with easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.

Hazardous Area

Intrinsically Safe, For Intrinsically Safe applications we recommend the F-series.

Features

Displays level, height and percentage filled.
Two alarm values can be entered: low and high level alarm.

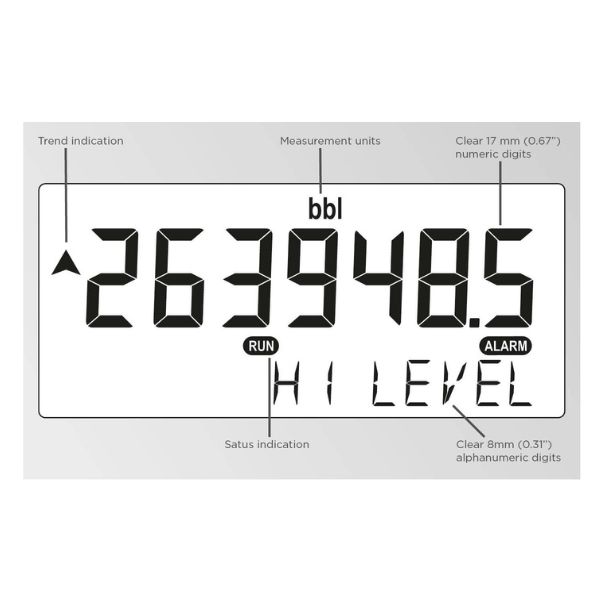

Level: six large 17mm (0.67) digits.
Selectable on-screen engineering units; volumetric or mass.
Auto backup of all settings.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).
Red flashing LED backlight in case of a level alarm.
Easy configuration with clear alphanumerical display.
Aluminum DIN front panel of 144 x 72mm (5.67” x 2.83”) according DIN 43700 / IEC 61554.
Various accessories are available for this product.

Applications

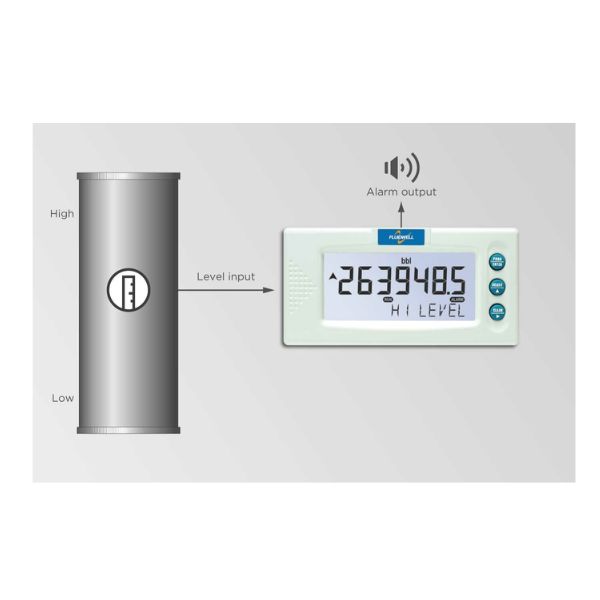

The D073 fits in level measurement applications where continuous level monitoring is important.
The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.

Specifications

Signal Inputs

Level Inputs

(0)4 – 20mA.
0 – 10V DC.

Signal Outputs

Alarm outputs

Function:Configurable alarm output for high, low or both combined level alarms.
Type:One passive signal output, an active signal output or a robust, highly isolated (NO/NC) relay.

Analog outputs

None

Supply

Power Supply

Basic: 8 – 30V DC (no real sensor supply).
Long life Lithium battery.
4 – 20mA input Loop-powered.
24V AC/DC + sensor supply.
115 – 230V AC + sensor supply.

Sensor Supply

2, 12 & 24V DC.

Hazardous Area

Intrinsically Safe

For Intrinsically Safe applications we recommend the F-Series.

Communication

Modbus communication available on F1-Series
HART communication is available with the F018 & E018Flow rate Monitor / Totalizers.
