Description

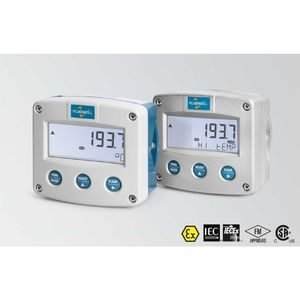

Fluidwell F043 Safe Area Temperature Monitor The F043 is a versatile temperature indicator with a continuous temperature monitoring feature. It offers the ability to set one low-temperature and one high-temperature alarm value. If desired, an ignore function can be set up to allow for an incorrect temperature for a certain period of time. The configuration of the Span, offset and a number of decimals are done through software functions, without any sensitive DIP switches or trimmers.

The display shows the actual temperature, alarm values, alarm messages, and status. On-screen engineering units are easily configured from a comprehensive selection.

Advantages

Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X).
It is so rugged, a truck can even stand on it!
Intrinsically Safe available – ATEX, IECEx, FM, and CSA approval for gas and dust applications.
Familiar with easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels, or directly onto outdoor sensors.

Features

Temperature monitoring: two alarm values can be set: low and high temperature alarm.
Alarm values can be changed by the operator or they can be password protected.
One alarm output for high, low or both combined temperature alarms.
Temperature: six large 17mm (0.67″) digits.
Selectable on-screen engineering units:
°C – °F – K.
Red flashing LED backlight in case of a temperature alarm; intensity adjustable.
Displays clear alarm messages.
Intrinsically safe according ATEX, IECEx, FM and CSA C-US.
GRP, Aluminum or high grade stainless steel enclosure.
Auto backup of settings in EEPROM memory.
Easy configuration with clear alphanumerical display.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).
Various accessories are available for this product.

Applications

For applications where continuous temperature measurement and monitoring is important without signal re-transmission.
The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).

Specifications

Signal Inputs

Temperature Inputs

PT100 – 2, 3 or 4 wire PRTD sensor.
(0)4 – 20mA.

Signal Outputs

Alarm outputs

Function: Configurable alarm output for high, low or both combined temperature alarms.
Type: One passive NPN transistor, active PNP transistor or isolated electro-mechanical relay.

Analog outputs

None.

Supply

Power Supply

Long life Lithium battery.
4 – 20mA, input Loop-powered.
8 – 24V AC/DC.
115 – 230V AC.
Basic: 8 – 30V DC.

Sensor Supply

8.2, 12, 24V DC.

Hazardous Area

Intrinsically Safe

ATEX:
Gas: II 1 G Ex ia IIC T4 Ga
Dust: II 1 D Ex ia IIIC T₂₀₀ 100 °C Da
IECEx:
Gas: Ex ia IIC T4 Ga
Dust: Ex ia IIIC T₂₀₀ 100 °C Da
CSA:
I.S. Class I/II/III, Div 1, Grp A…G, T4
Class I, Zone 0, AEx ia IIC T4 Ga
FM:
I.S. Class I/II/III, Div 1, Grp A…G, T4
Class I, Zone 0, AEx ia IIC T4

Explosion Proof

ATEX/IECEx:
Gas: II 2 G Ex db IIB+H2 T5 Gb
Dust: II 2 D Ex tb IIIC T80°C Db

Communication

Modbus communication available on F1-Series products.
HART communication is available with the F018 Flow rate Monitor / Totalizer.
