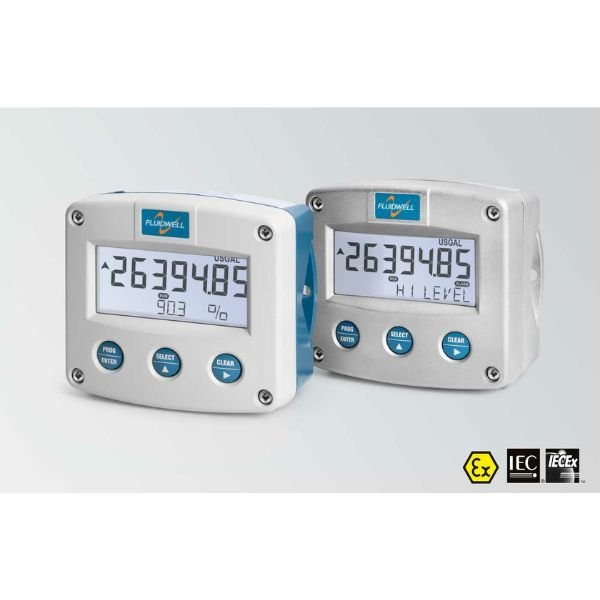

Fluidwell F170 Safe Area Level Monitor

Product Note:

No product notes available.

Categories: Display, Indicator, and Control, Level Transmitter, Others, Produk Pilihan Tags: Display Indicator and Control, Fluidwell, Level Transmitter

Description

Description of Fluidwell F170 Safe Area Level Monitor

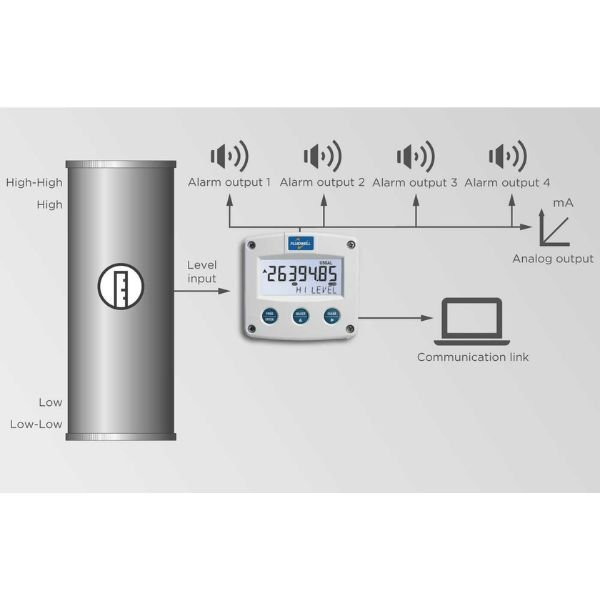

is a versatile level indicator featuring continuous level monitoring. It offers the ability to set two low and two high-level alarm values. If desired, an ignore function can be set up to allow for an incorrect level for a certain period of time. Up to five outputs are available to transmit alarm conditions and actual level. The display shows the actual level, height, or percentage, alarm values, alarm messages, and status. On-screen engineering units are easily configured from a comprehensive selection.

Fluidwell F170 Safe Area Level Monitor Advantages

Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X).
It is so rugged, a truck can even stand on it!
Intrinsically Safe available – ATEX and IECEx approval for gas and dust applications.
Familiar with easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels, or directly onto outdoor sensors.

Features

Level monitoring: four alarm values can be set: low-low, low, high and high-high level alarm.
Alarm values can be changed by the operator or they can be password protected.
Optional clear alarm output function, e.g. to turn off an acoustic alarm.
Analog output to transmit the actual level.

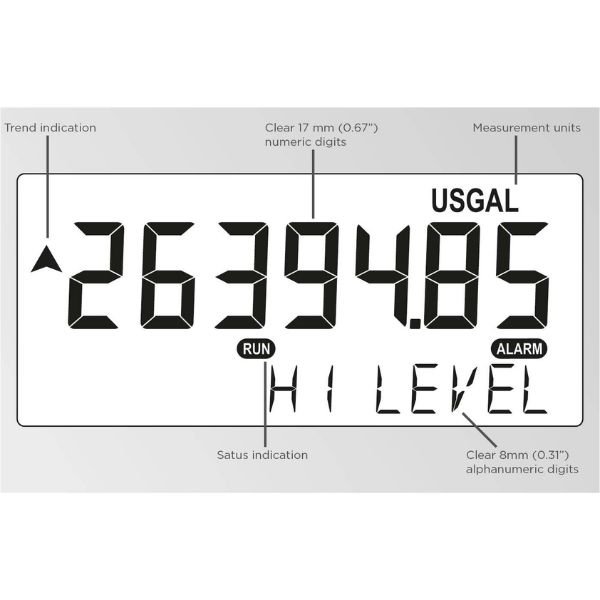

Level and alarm values: six large 17mm (0.67″) digits.
Displays level, height or percentage, measuring unit and alarm messages simultaneously.
Alarm ignore function allows an incorrect level for a certain period of time.
Selectable on-screen engineering units; volumetric, mass and height.
Displays clear alarm messages.
Red flashing LED backlight in case of a level alarm; intensity adjustable.
Intrinsically safe according ATEX and IECEx.
GRP, Aluminum or high grade stainless steel enclosure.
Backup of settings in EEPROM memory.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).
Various accessories are available for this product.

Applications

Level measurement and continuous level monitoring is desired as well as signal re-transmission of the level or serial communication.
The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).

Specifications

Signal Inputs

None

Signal Outputs

Alarm outputs

- - Function: Configurable alarm outputs for low-low, low, high, high-high or all combined level alarms.
  - Type: Up to three passive NPN transistors or active PNP transistors or up to four isolated electro-mechanical relays.

Analog outputs

- - Function: Re-transmitting the actual level – the output can be scaled to any range (e.g. 2.5 m³ to 1400.0 m³).
  - Type: One passive isolated, floating or loop powered 4 – 20mA output or one active (0)4 – 20mA or 0 – 10V DC output.

Supply

Power Supply

- - Long life Lithium battery.
  - 4 – 20mA Loop-powered.
  - 8 – 24V AC/DC.
  - 115 – 230V AC.
  - Basic: 8 – 30V DC.

Sensor Supply

- - 8.2, 12, 24V DC.

Hazardous Area

Intrinsically Safe

- - ATEX:
    Gas: II 1 G Ex ia IIB/IIC T4 Ga
    Dust: II 1 D Ex ia IIIC T₂₀₀ 100 °C Da
  - IECEx:
    Gas: Ex ia IIC/IIB T4 Ga
    Dust: Ex ia IIIC T₂₀₀ 100 °C Da

Explosion Proof

- - ATEX:
    Gas: II 2 G / Ex d IIB T5 Gb
    Dust: II 2 D / Ex t IIIB T100°C Db

Communication

- - Function: All process data and settings can be read and modified through the communication link.
  - Protocol: Modbus ASCII / RTU.
  - Interface: RS232 / RS485 2-wire or 4-wire / TTL.

Downloads

Datasheet: Fluidwell F170 Safe Area Level Monitor
