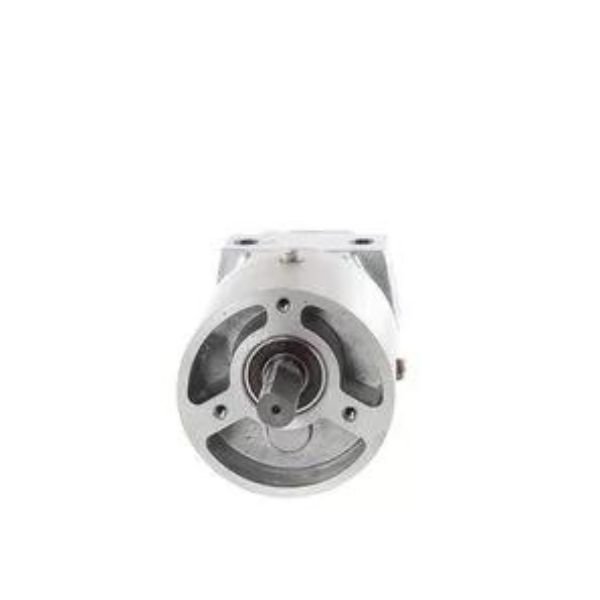

Gast 1AM-NRV-60-GR11 Gear Motor

The compact 1AM-NRV (GM) series offers operating speed and power output that can be adjusted to meet the precise needs of your application. Their 15:1 gear reducer is not only ideal for lower speed and higher torque applications, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Features

  • 8 Vanes, Reversible
  • 15:1 gear reducer
  • Face mounting
  • Horizontal or shaft down operation
  • Muffler AF350 (shown in photo)
  • II 2 GD c T4

Applications

RECOMMENDED

  • Filter AH100F
  • Regulator AH101R
  • Gauge AA806
  • Lubricator AH102L
  • Oil AD220 – 1 quart (.94 litres)
  • Repair kit K278 (Air motor only, 8 Vane)
  • Repair kit K201 (Air motor only, 4 Vane)

Specifications

  • Max Air Consumption: 21 cfm ( 35.68 m3h )
  • Max Power: 0.34 hp ( 0.25 kW )
  • Max Pressure: 7 bar ( 101.53 psi )
  • Max Sound Level: 78 dB(A)
  • Max Speed: 350 rpm
  • Max Torque: 72 in-lb ( 8.14 N m )
  • Mount: FACE
  • Output Shaft Type: Flat
  • Port Size and Type: 1/8″ NPT
  • Regulatory Approval: CE, ATEX
  • Rotation: Reversible
  • Shaft Size: 0.5 in ( 12.7 mm )
  • Stainless Steel: NO
  • Starting Torque @ 80psi: 40 in-lb ( 4.52 N m )
  • Torque Max Speed: 0.62 in-lb ( 0.07 N m )
  • Vanes: 8
  • Weight: 3.1 lbs ( 1.41 kg )

Downloads

Datasheet : Gast 1AM-NRV-60-GR11 Gear Motor
