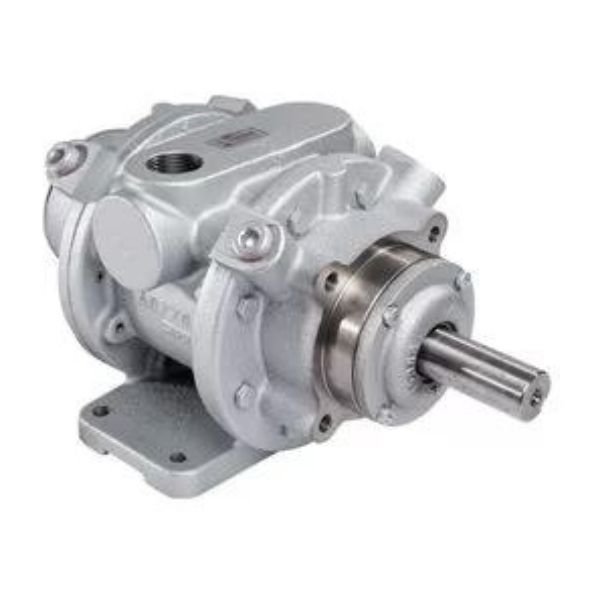

Gast 16AM-FRV-2 Air Motor

Gast 16AM-FRV-2 Air Motor The 16AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor.

Gast 16AM-FRV-2 Air Motor

Gast 16AM-FRV-2 Air Motor The 16AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Features

  • 6 Vanes, CCW Rotation
  • Foot and face mounting
  • Any plane operation
  • II 2 GD c T4

Applications

  • 6 Vanes, CCW Rotation
  • Foot and face mounting
  • Any plane operation
  • II 2 GD c T4

Specifications

  • Key Type: M30-KEYSQ
  • Max Air Consumption: 275 cfm ( 275 no label )
  • Max Power: 9 hp ( 6.71 kW )
  • Max Pressure: 7 bar ( 101.53 psi )
  • Max Sound Level: 113 dB(A)
  • Max Speed: 2000 rpm
  • Max Torque: 372 in-lb ( 42.04 N m )
  • Mount: FOOT
  • Output Shaft Type: Keyed
  • Port Size and Type: 1-1/4″ NPT
  • Regulatory Approval: CE, ATEX
  • Rotation: Reversible
  • Shaft Size: 1.13 in ( 28.7 mm )
  • Stainless Steel: NO
  • Starting Torque @ 80psi: 268 in-lb ( 30.28 N m )
  • Torque Max Speed: 290 in-lb ( 32.77 N m )
  • Vanes: 6
  • Weight: 73 lbs ( 33.11 kg )

Downloads

Datasheet : Gast 16AM-FRV-2 Air Motor
