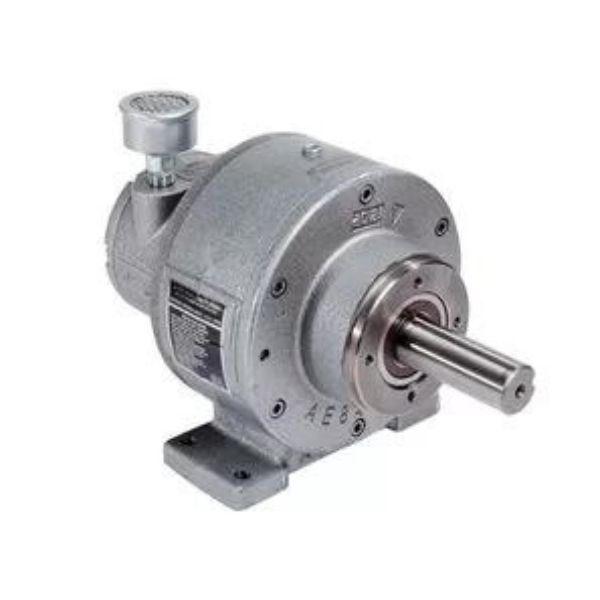

Gast 4AM-RV-75-GR25 Gear Motor

Gast 4AM-RV-75-GR25 Gear Motor, The compact 4AM-GR25 (GM) series offers variable operating speeds and power output that can be adjusted to meet the precise needs of your application. Their 15:1 gear reducer is not only ideal for lower speed and higher torque applications, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Why use a Gast Air Motor?

Variable Speed
You can vary air motor speed between 300 and 10,000 rpm (depending on model selection) with a simple valve put in between
the air source and air motor.

Features

15:1 gear reducer
Face, foot mounting
Horizontal or shaft down operation
Metal muffler AC980 adds 2″ height when installed
II 2 GD c T4

Applications

RECOMMENDED

Filter AH103F
Regulator AH104R
Gauge AA806
Lubricator AH105L
Oil AD220 – 1 quart (.94 litres)
Repair kit K205 (Air motor only)

Specifications

Key Type: M30-KEYSQ
Max Air Consumption: 60 cfm ( 101.94 m3h )
Max Power: 1.7 hp ( 1.27 kW )
Max Pressure: 5.5 bar ( 79.77 psi )
Max Sound Level: 87 dB(A)
Max Speed: 200 rpm
Max Torque: 640 in-lb ( 72.32 N m )
Mount: FACE/FOOT
Output Shaft Type: Keyed
Port Size and Type: 1/4″ NPT
Regulatory Approval: CE, ATEX
Rotation: Reversible
Shaft Size: 1 in ( 25.4 mm )
Stainless Steel: NO
Starting Torque @ 80psi: 300 in-lb ( 33.9 N m )
Torque Max Speed: 400 in-lb ( 45.2 N m )
Vanes: 4
Weight: 28 lbs ( 12.7 kg )
