Description

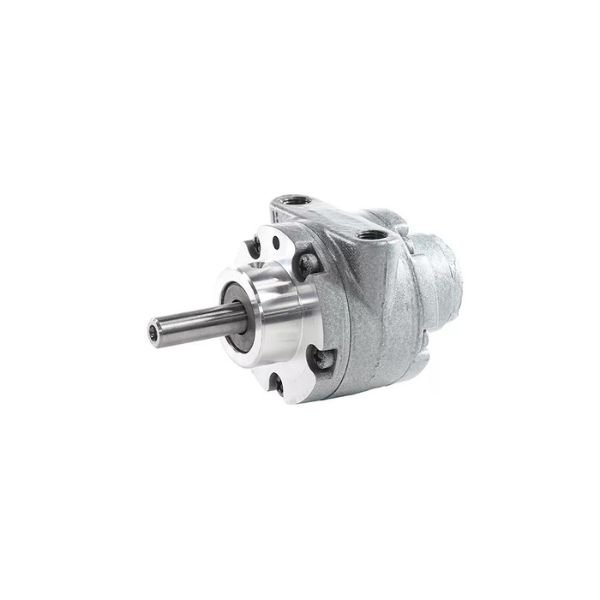

Gast 1UP-NRV-3A Air Motor

Gast 1UP-NRV-3A Air Motor The compact and portable 1AM/1UP series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Function

Bi-Directional Rotary Drive: Converts compressed air into mechanical rotational energy ( $0.75\text{ HP}$ max, up to $6,000\text{ RPM}$ ), switching instantly between Clockwise (CW) and Counter-Clockwise (CCW) rotation via a 4-way pneumatic directional valve.
Hub-Mounted Power Unit: Serves as an intrinsically safe, non-sparking drive for mixers, winches, and indexers operating in ATEX Zone 1 / Class I Div 1 hazardous locations.
Self-Cooling Overload Defense: Functions continuously under high viscosity loads or total mechanical stalls without motor damage, utilizing internal air expansion to cool the rotor assembly.

Specifications

Max Air Consumption: 27 cfm ( 45.87 m3h )
Max Power: 0.42 hp ( 0.31 kW )
Max Pressure: 5.6 bar ( 81.22 psi )
Max Sound Level: 78 dB(A)
Max Speed: 6000 rpm
Max Torque: 6 in-lb ( 0.68 N m )
Mount: HUB
Output Shaft Type: Flat
Port Size and Type: 1/8″ NPT
Regulatory Approval: CE, ATEX
Rotation: Reversible
Shaft Size: 0.38 in ( 9.65 mm )
Stainless Steel: NO
Starting Torque @ 80psi: 5 in-lb ( 0.57 N m )
Torque Max Speed: 5.25 in-lb ( 0.59 N m )
Vanes: 4
Weight: 3 lbs ( 1.36 kg )

Features

Hub mounting
Any plane operation
Muffler AF350
II, 2 GD c T4

Applications

Filter AH100F
Regulator AH101R
Gauge AA807
Lubricator AH102L
Oil AD220 – 1 quart (.94 liters)
Repair kit K285 (Single Rotation)
Repair kit K286 (Reversible)
Repair kit K298 (8 Vane, Reversible)
