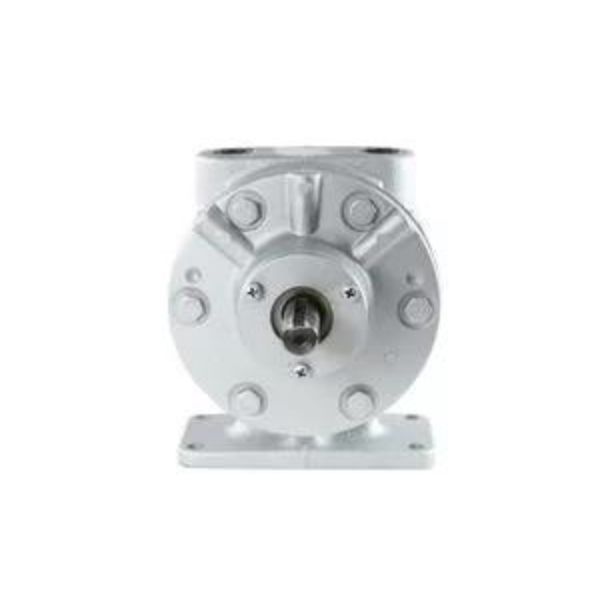

Gast 6AM-FRV-5A Air Motor

Gast 6AM-FRV-5A Air Motor offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application.

Gast 6AM-FRV-5A Air Motor

Gast 6AM-FRV-5A Air Motor the compact and portable 6AM series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.

Why use a Gast Air Motor?

Variable Speed
You can vary air motor speed between 300 and 10,000 rpm (depending on model selection) with a simple valve put in between
the air source and air motor.

Instantly Reversible
A four-way valve in the air line enables a Gast Air Motor to be instantly reversed. A turn of the valve causes a complete reversal
of rotation, even when the motor is running at full speed.

Features

  • 4 Vanes, Reversible
  • Foot mounting
  • Any plane operation
  • Metal muffler AC990 adds 2″ height when installed
  • II 2 GD c T4

Applications

RECOMMENDED

  • Filter AH106F
  • Regulator AH107R
  • Gauge AA806
  • Lubricator AH108L
  • Oil AD220 – 1 quart (.94 litres)
  • Repair kit K208 (4 Vane)
  • Repair kit K281 (8 Vane)

Specifications

  • Key Type: M30-KEYSQ 1 1/4
  • Max Air Consumption: 128 cfm ( 217.47 m3h )
  • Max Power: 4 hp ( 2.98 kW )
  • Max Pressure: 7 bar ( 101.53 psi )
  • Max Sound Level: 90 dB(A)
  • Max Speed: 3000 rpm
  • Max Torque: 115 in-lb ( 13 N m )
  • Mount: FOOT
  • Output Shaft Type: Keyed
  • Port Size and Type: 1/2″ NPT
  • Regulatory Approval: CE, ATEX
  • Rotation: Reversible
  • Shaft Size: 0.63 in ( 16 mm )
  • Stainless Steel: NO
  • Starting Torque @ 80psi: 61 in-lb ( 6.89 N m )
  • Torque Max Speed: 84 in-lb ( 9.49 N m )
  • Vanes: 4
  • Weight: 21 lbs ( 9.53 kg )

Downloads

Datasheet : Gast 6AM-FRV-5A Air Motor
