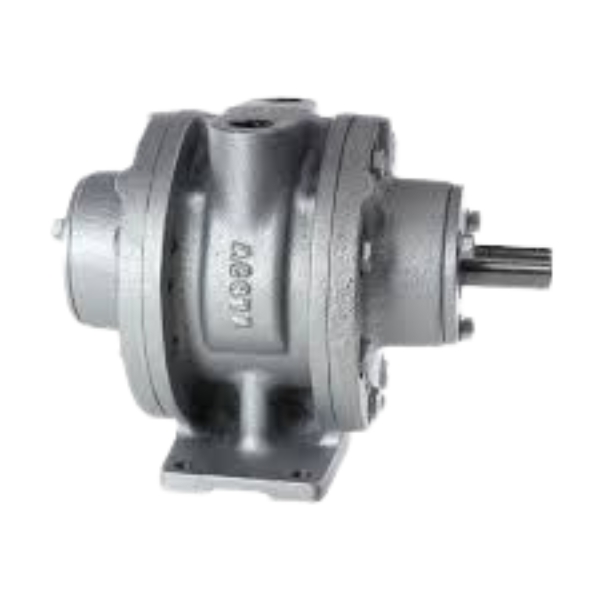

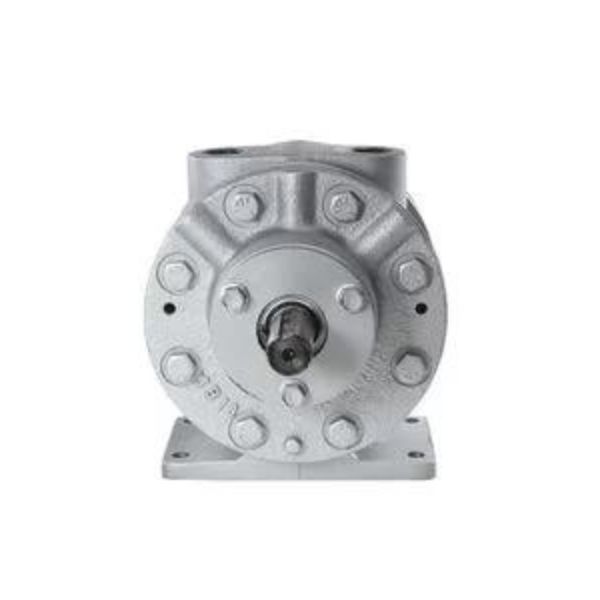

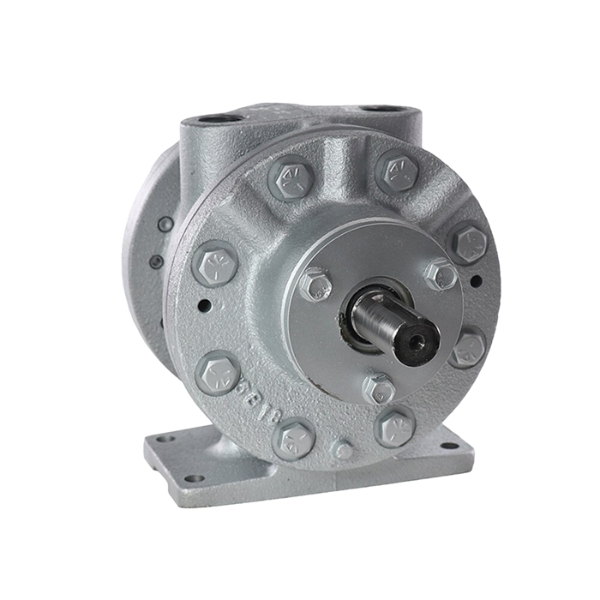

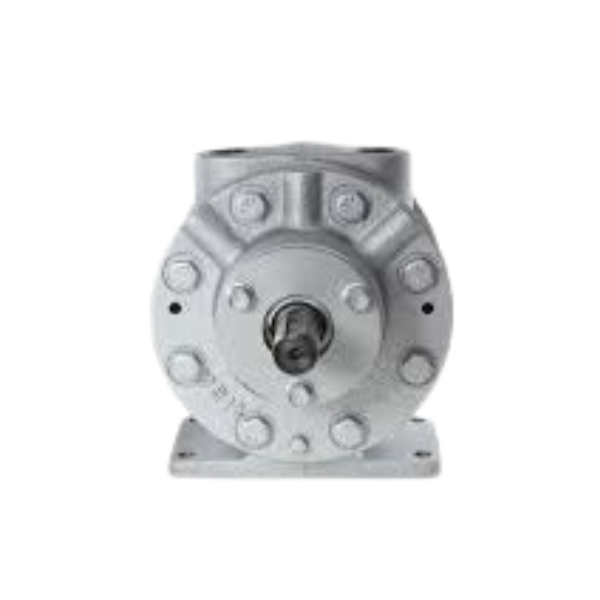

Gast 8AM-FRV 30A Air Motor

The 8AM family offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, being a non electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Features

  • 8 Vanes, Reversible
  • Foot mounting
  • Any plane operation

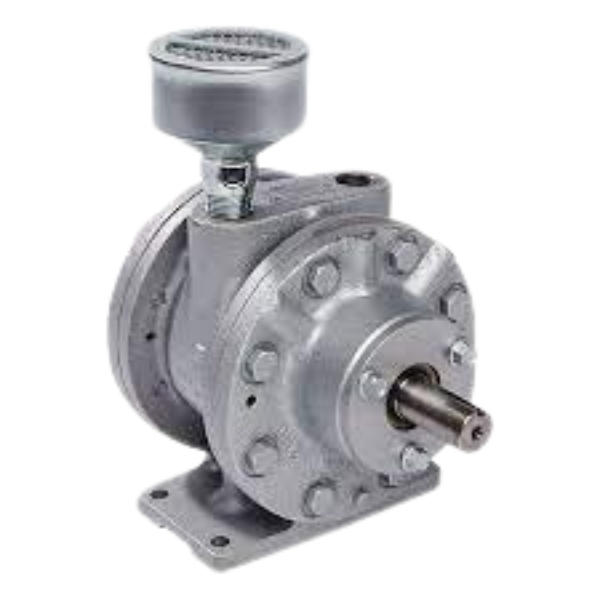

  • Metal muffler AC990 adds 2″ height when installed
  • II 2 GD c T4

Applications

RECOMMENDED

  • Filter AH106F
  • Regulator AH107R
  • Gauge AA806
  • Lubricator AH108L
  • Muffler AG600 – above 1,000 rpm
  • Oil AD220 – 1 quart (.94 litres)
  • Repair kit K210 (4 Vane)
  • Repair kit K283 (8 Vane)

Specifications

  • Key Type: M30-KEYSQ 1.0
  • Max Air Consumption: 175 cfm ( 297.33 m3h )
  • Max Power: 5 hp ( 3.73 kW )
  • Max Pressure: 7 bar ( 101.53 psi )
  • Max Sound Level: 105 dB(A)
  • Max Speed: 2500 rpm
  • Max Torque: 185 in-lb ( 20.91 N m )
  • Mount: FOOT
  • Output Shaft Type: Keyed
  • Port Size and Type: 1/2″ NPT
  • Regulatory Approval: CE, ATEX
  • Rotation: Reversible
  • Shaft Size: 0.75 in ( 19.05 mm )
  • Stainless Steel: NO
  • Starting Torque @ 80psi: 117 in-lb ( 13.22 N m )
  • Torque Max Speed: 132 in-lb ( 14.92 N m )
  • Vanes: 8
  • Weight: 27 lbs ( 12.25 kg )

Downloads

Datasheet : Gast 8AM-FRV 30A Air Motor
