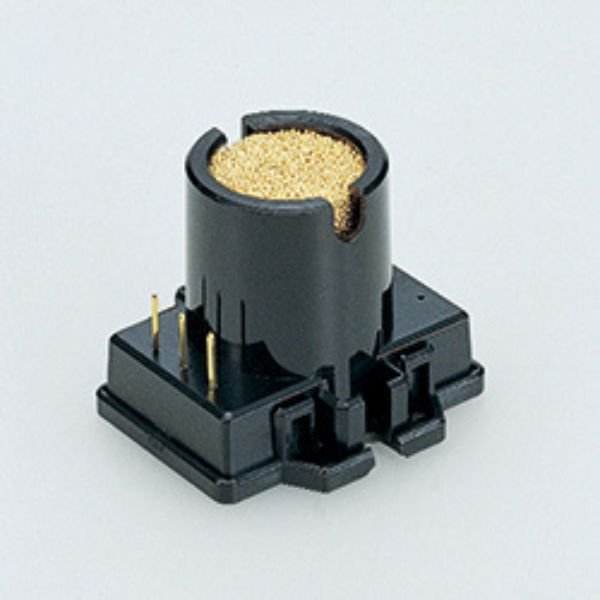

Gastec FG-3AL Flammable Gas Sensor

Gastec FG-3AL Flammable Gas Sensor

Product Note:

No product notes available.

Categories: , Tags: , ,

Description

Gastec FG-3AL Flammable Gas Sensor

Gastec FG-3AL Flammable Gas Sensor monitors the percentage of ambient gas in the air determining if the concentration is rich enough for the mixture to burn. When a high concentration is reached, best practice is to replace the air with fresh and/or shut down equipment and evacuate personnel from the area.

Gastec FG-3AL Flammable Gas Sensor Catalytic combustion sensors 33 x 30 x 36 30g : MA-0510 / GOM-3AL

GASTEC is engaged in research and development of world-leading catalyst technology and power collection technology, and has realized a variety of highly sensitive, miniature sensors. These sensors detect the concentration of oxygen concerning which even a minute percentage change can affect the human body. They can also detect colorless and odorless toxic gases which cannot be detected by the five senses, and flammable gases which can bring about an explosion or other disaster. In this way, we promote the ability to visualize danger.

Specifications

ParameterSpecification
ManufacturerGastec Corporation
Model DesignationFG-3AL
Sensor TypeCatalytic Combustion (Pellistor) Sensor
Target ApplicationLow Concentration Combustible Gases & Vapors
Compatible MonitorsGastec MA-0510 / GOM-3AL portable gas detectors
Dimensions / Weight33 mm / 30mm / 36mm (30g)
Response & StabilityHigh accuracy, linear output up to LEL, minimally affected by ambient temperature and humidity

Features

  • High Sensitivity Catalytic Combustion: Tuned for detecting low, trace concentrations of combustible gases and vapors before reaching hazardous explosive levels.

  • Intrinsically Flameproof Construction: Features a double stainless steel 200-mesh netting and sintered flame arrestor housing to suppress internal ignition hazards.

  • Linear Output Signal: Delivers a proportional voltage response right up to the Lower Explosive Limit (LEL) for reliable leak detection.

Applications

  • Low-Level Gas Leak Detection: Pinpointing micro-leaks in natural gas, propane, butane, and hydrogen piping manifolds.

  • Confined Space Entry Screening: Pre-entry testing of storage tanks, utility vaults, and chemical vessels before hot work permits are issued.

  • Industrial Plant Safety Audits: Continuous screening around solvent storage rooms, paint spray booths, and refinery process units.

Downloads
