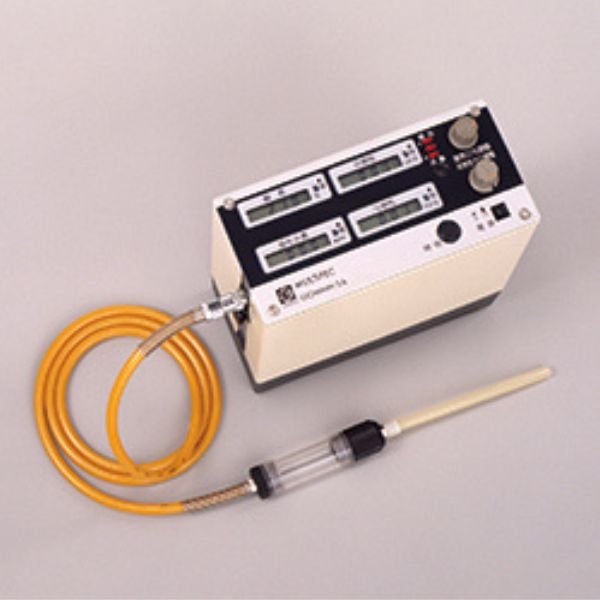

Gastec GOMH-3A Multiple Gas Detector

Gastec GOMH-3A Multiple Gas Detector one unit performs three roles, realizing highly efficient and safe control at the same time.

Gastec GOMH-3A Multiple Gas Detector

Gastec GOMH-3A Multiple Gas Detector one unit performs three roles, realizing highly efficient and safe control at the same time.

Can simultaneously measure three gases: oxygen, a flammable gas, and hydrogen sulphide.

GASTEC Detector Tubes indicate concentrations directly by way of a calibrated scale printed on the tubes. At GASTEC, we endeavour to achieve highest quality detector tubes for analysing airborne gases/vapours, as well as pollutants in soil and water through our advanced state-of-the-art research and development. Through our efforts we have acquired a solid reputation among our customers in virtually all sectors of industry, commerce and society. Tubes are now available for more than 500 different applications.

Features



  • Simultaneous measurement of oxygen, flammable gases(non-methane), hydrogen sulphide
  • Small / compact and lightweight
  • Low power consumption design
  • With Light & flow rate check function

Applications

three gases: oxygen, a flammable gas, and hydrogen sulphide.

Specifications

Target gas Oxygen Combustible gas Hydrogen sulphide
Measurement range 0 – 25 % 0 – 100 %LEL 0 – 30 ppm
Measurement principle Galvanic cell method Combustion contact Controlled potential electrolysis
Sampling method Diaphragm pump
Display Digital LCD (backlit)
Indicating accuracy +/- 0.5 % 5 % of full scale
Alarm threshold <18 % >20 %LEL >10 ppm
Alarm signal Short, intermittent sound and blinking alarm light
Operating Temperature -10 – 40 ℃
Power source Four size C dry cell batteries for approx.
4 hours of operation(without alarm signal being emitted)
Dimensions 150(W) x 70(D) x 170(H) mm
Weight 1.2kg

Downloads

Datasheet : Gastec GOMH-3A Multiple Gas Detector
