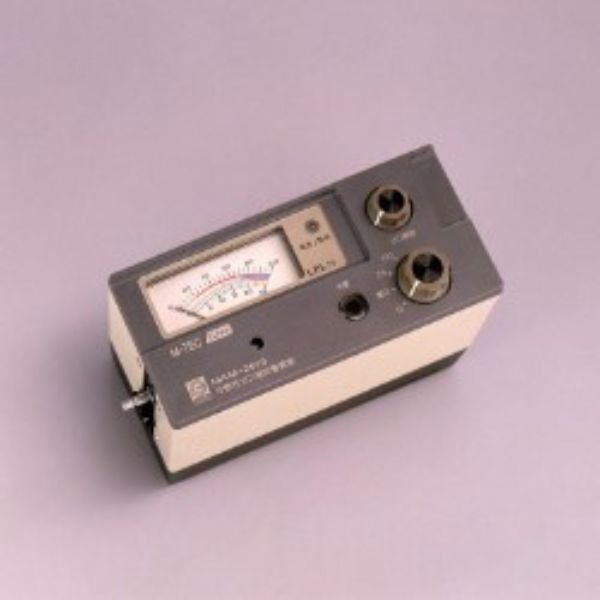

Gastec MAM-2510 Hand Held Methane Gas Detector

Gastec MAM-2510 Hand Held Methane Gas Detector methane gas detector is a small, lightweight, hand-held device for detecting the presence of methane gas.

Gastec MAM-2510 Hand Held Methane Gas Detector hand-held methane gas detector is a small, lightweight, hand-held device for detecting the presence of methane gas. It employs an optimized combustion-type contact sensor that enables the detection and measurement of flammable gas to guard against the possibility of explosion.

Detector Tube System

Gastec Detector Tubes indicate concentrations directly by way of a calibrated scale printed on the tubes. At Gastec, we endeavour to achieve highest quality detector tubes for analysing airborne gases/vapours, as well as pollutants in soil and water through our advanced state-of-the-art research and development. Through our efforts we have acquired a solid reputation among our customers in virtually all sectors of industry, commerce and society. Tubes are now available for more than 500 different applications.

Features

  • Compact and lightweight
  • Low power consumption sensor
  • Analog display shows LEL or concentration (%)
  • For exclusive measurement of methane gas only

Applications

employs an optimized combustion-type contact sensor that enables the detection and measurement of flammable gas to guard against the possibility of explosion

Specifications

Measurement range 0 – 25%LEL, 0 – 100%LEL
Measurement method Catalytic combustion gas sensor
Sampling method Diaphragm pump
Display Analog metre (backlit)
Indicating accuracy +/- 5% of full scale
Alarm threshold and signal 20%LEL
Alarm threshold and signal Intermittent sound and blinking alarm light
Explosion proofing Certified by Japan Ministry of Health, Labour and Welfare (Class id3aG3 No.T62339)
Operating Temperature -10 – 40℃
Power source Three size C manganese dry cell batteries for 4 hours of operation (without alarm signal being emitted)
Three size C alkaline dry cell batteries for 8 hours of operation (without alarm signal being emitted)
Continuous working time Manganese dry batteries 4 hours, Alkaline batteries 8 hours (When an alarm signal is not output, for both types)
Dimensions 151(W) x 71(D) x 115(H) mm
Weight 1.1kg

Downloads

Datasheet : Gastec MAM-2510 Hand Held Methane Gas Detector
