Description

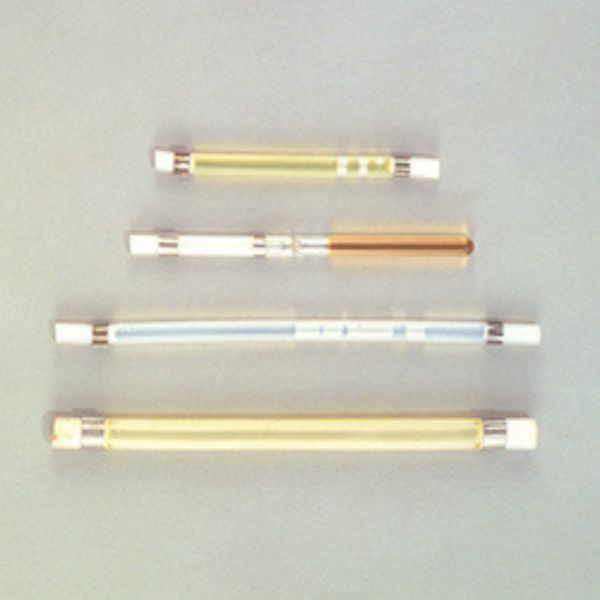

Gastec P-181-H Permeation Tube Dimethylamine

Gastec P-181-H (also cataloged as P181H) is a certified, high-emission Dimethylamine ( $(\text{CH}_3)_2\text{NH}$ / DMA) permeation tube used as a primary trace-gas generation standard for producing known, continuous concentrations of dimethylamine vapor.

When housed inside a constant-temperature dynamic gas calibration generator (such as the Gastec PD-1B or standard laboratory calibration diluters), it releases a certified micro-rate mass flow of pure dimethylamine through a fluoropolymer membrane into a controlled dilution air or nitrogen stream.

Specifications

Parameter	Specification
Manufacturer	Gastec Corporation
Part Number / Model	P-181-H / P181H
Target Chemical Vapor	Dimethylamine ( $(text{CH}_3)_2text{NH}$ )
Permeation Membrane	Fluoropolymer (FEP/Teflon) capillary reservoir
Certified Operating Temp	$30.0^circtext{C to }40.0^circtext{C}$ (specified on individual calibration certificate)
Primary Output Range	Generates $0.2text{ to }50.0text{ ppm}$ (dependent on carrier gas flow rate)
Expected Service Life	6 to 12 months (determined by operating temperature and initial fill mass)
Compatible Equipment	Gastec PD-1B / PD-1C Gas Generator series, standard dynamic gas diluters

Features

Concentration range 0.2 – 10.3 ppm

Applications

Chemical & Organic Amine Plant Safety: Calibrating photoionization (PID), flame ionization (FID), and electrochemical sensors used for workplace air monitoring in rubber vulcanization, pharmaceutical manufacturing, and water treatment chemical plants.
Colorimetric Detector Tube Validation: Laboratory verification and accuracy auditing of Gastec Dimethylamine detector tubes (such as Gastec 181 series).
Industrial Hygiene & Air Quality Audits: Generating low-ppm span standards to verify monitoring equipment and leak detection alarms for volatile, alkaline amine vapors.

Downloads

Gastec P-181-H Permeation Tube Dimethylamine

Gastec P-181-H (also cataloged as P181H) is a certified, high-emission Dimethylamine (

(\text{CH}_3)_2\text{NH}

/ DMA) permeation tube used as a primary trace-gas generation standard for producing known, continuous concentrations of dimethylamine vapor.

Specifications

Parameter

Specification

Manufacturer

Gastec Corporation

Part Number / Model

P-181-H / P181H

Target Chemical Vapor

Dimethylamine (

(text{CH}_3)_2text{NH}

)

Permeation Membrane

Fluoropolymer (FEP/Teflon) capillary reservoir

Certified Operating Temp

30.0^circtext{C to }40.0^circtext{C}

(specified on individual calibration certificate)

Primary Output Range

Generates

0.2text{ to }50.0text{ ppm}

(dependent on carrier gas flow rate)

Expected Service Life

6 to 12 months (determined by operating temperature and initial fill mass)

Compatible Equipment

Gastec PD-1B / PD-1C Gas Generator series, standard dynamic gas diluters

Applications

Chemical & Organic Amine Plant Safety: Calibrating photoionization (PID), flame ionization (FID), and electrochemical sensors used for workplace air monitoring in rubber vulcanization, pharmaceutical manufacturing, and water treatment chemical plants.

Colorimetric Detector Tube Validation: Laboratory verification and accuracy auditing of Gastec Dimethylamine detector tubes (such as Gastec 181 series).

Industrial Hygiene & Air Quality Audits: Generating low-ppm span standards to verify monitoring equipment and leak detection alarms for volatile, alkaline amine vapors.
