Description

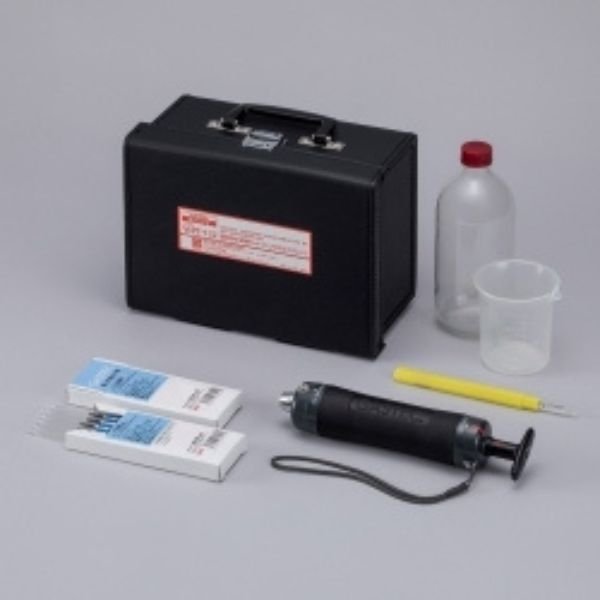

Gastec WPT-135 Waste Water Test Kit

Gastec WPT-135 Waste Water Test Kit Enables concentrations of organic chlorinated solvents (e.g. tetrachloroethylene, trichloroethylene) present in wastewater to be easily measured.

*We also have the Wastewater test kit WP-132 / WP-133 / WP-135 which includes the Plastic syringe pump instead of the Gas sampling pump GV-100.

How to use:

Measure 200mL of wastewater with the beaker, replace it in the glass jar, seal the opening with a stopper, and shake it for one minute.
Both ends of the detector tube are broken off, and it is inserted in the syringe or sampling pump (GV-100) for gas sampling.
The stopper of the glass jar is removed, and measurement is done with the point of the detector tube just above the surface of the liquid.
After the measuring time is over, the scale on the detector tube is read.
The temperature of the wastewater is measured.
By using the conversion data of the user manual, calculate the concentration in the wastewater.

Features

Measurements SO2,NO2, and O2 in smoke and soot
Measurement is completed in less than 60 seconds, enabling the measured results to be known on the spot.
No special technology, knowledge or skill are required.
Excellent repeatability. The difference in results obtained by different persons is small.
Both the initial cost and running costs are low, and maintenance is unnecessary.

Applications

Measure 200mL of wastewater with the beaker, replace it in the glass jar, seal the opening with a stopper, and shake it for one minute.
Both ends of the detector tube are broken off, and it is inserted in the syringe or sampling pump (GV-100) for gas sampling.
The stopper of the glass jar is removed, and measurement is done with the point of the detector tube just above the surface of the liquid.
After the measuring time is over, the scale on the detector tube is read.
The temperature of the wastewater is measured.
By using the conversion data of the user manual, calculate the concentration in the wastewater.

Specifications

Substance to be measured	Tube No. & Name		Measuring range
Trichloroethylene	132M	Trichloroethylene	0.14 – 7.0 mg/l
	132LL	Trichloroethylene	0.007 – 0.256 mg/l
	132L	Trichloroethylene	0.056 – 1.95 mg/l
	132LC	Trichloroethylene	0.1 – 0.4 mg/l
Tetrachloroethylene	133M	Tetrachloroethylene	0.13 – 6.3 mg/l
	133LL	Tetrachloroethylene	0.005 – 0.174 mg/l
	133L	Tetrachloroethylene	0.052 – 1.93 mg/l
	133LC	Tetrachloroethylene	0.05 – 0.3 mg/l
1,1,1-Trichloroethane	135L	1,1,1-Trichloroethane	0.4 – 14 mg/l
